high-frequency welding machine / AC / PLC-controlled / for PVC

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

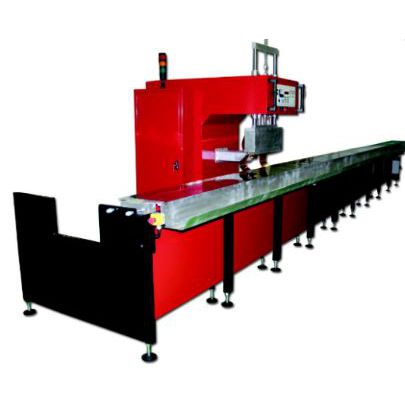

high-frequency welding machine high-frequency welding machine - BR3PT6000


  • Technique:


  • Power source:


  • Operational mode:


  • Other characteristics:

    for PVC, with foot pedal

  • Power:

    Max.: 20 W

    Min.: 3 W


Stretch ceilings are used in public places such as clubs, swimming pools, restaurants, halls, theatres, cinemas as well as in private lounges and residences. Stretched ceilings are practical and attractive. The structure constructions is very strong and resistant: a stretched ceiling of 40 m2 can hold up to 600 L of water. It is possible due to strong and tear-resistant welds achieved my means of high frequency welding technology.

BR3PT6000 is SPECIAL MODEL FOR STRECH CELILING adaptable also for CINEMA SCREEN production. It is movable machine equipped with specially particularized weld/tear electrode by which straight, strong and “invisible” welding joints are guaranteed. At the same time, keder (warping of edges), is enabled by specially constructed devices.
BR3PT6000 has output power from 3 to 6kW, pneumatic press, ant-crush safety system, touch screen, PLC that controls the length, travelled distance, time and power of welding etc. The HF machine is moving along the table on special rails allowing smooth motion and exact movement/distance control. The machine is designed for medium size PVC films where cycle/spot or precise continuous line weld is required.
If the costumer finds it necessary, the machine can be upgraded with additional length worktables for easier film and harpoon positioning during weld cycle. It can be converted easily into a advertising banner/billboard welder with the use of special wide weld electrode or any other straight bar or spot HF welder.
