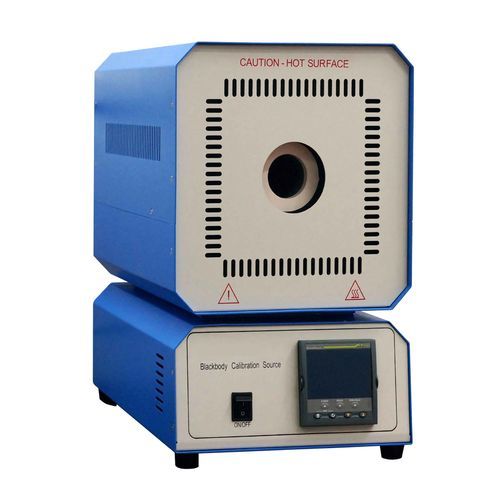

High-temperature black body calibration source BL678A
portablehigh-precision

High-temperature black body calibration source - BL678A - Balun Technology Co., Ltd - portable / high-precision
High-temperature black body calibration source - BL678A - Balun Technology Co., Ltd - portable / high-precision
High-temperature black body calibration source - BL678A - Balun Technology Co., Ltd - portable / high-precision - image - 2
High-temperature black body calibration source - BL678A - Balun Technology Co., Ltd - portable / high-precision - image - 3
High-temperature black body calibration source - BL678A - Balun Technology Co., Ltd - portable / high-precision - image - 4
High-temperature black body calibration source - BL678A - Balun Technology Co., Ltd - portable / high-precision - image - 5
High-temperature black body calibration source - BL678A - Balun Technology Co., Ltd - portable / high-precision - image - 6
Add to favorites
Compare this product


Characteristics

Type
portable, high-temperature, high-precision
Temperature

Min.: 100 °C
(212 °F)

Max.: 1,200 °C
(2,192 °F)

Description

Stability ±0.1℃ or 0.1%rd (whichever is greater) Emissivity > 0.995 Aperture 50 mm diameter The BL678A is a benchtop blackbody calibration source utilizing a digital indicating temperature ambient 300℃ to 1200℃. A precision platinum thermocouple N temperature sensor is embedded in the blackbody emitter, providing high accuracy and repeatability. The temperature controller uses the industry standard PID algorithms to control the emitter temperature to within 0.1℃ of the set points. The black body emitter mechanism uses a resistive heating device that provides a long life, short stabilization times, and stable temperature control. FEATURE • Temperature range 100℃ to 1200℃ • Emissivity is better than 0.995 • Temperature uniformity is up to 0.15℃ • 50 mm aperture diameter is compliance with most of D:S • Build-in temperature correction function APPLICATION • Infrared temperature sensors • Infrared thermal imaging systems • Spectrographic analyzers • Spectral radiometers • Heat flux meter
