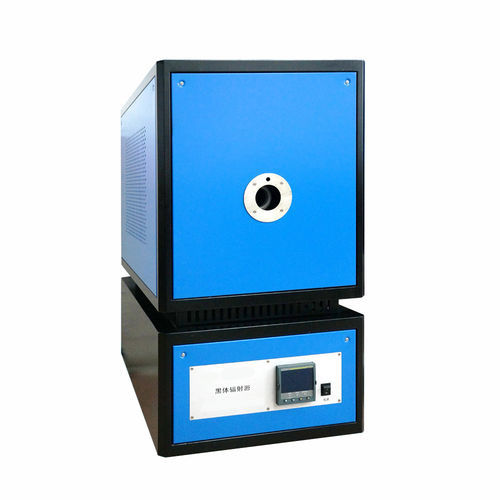

High-temperature black body calibration source BL679
portablehigh-precision

High-temperature black body calibration source - BL679 - Balun Technology Co., Ltd - portable / high-precision
High-temperature black body calibration source - BL679 - Balun Technology Co., Ltd - portable / high-precision
High-temperature black body calibration source - BL679 - Balun Technology Co., Ltd - portable / high-precision - image - 2
Add to favorites
Compare this product


Characteristics

Type
portable, high-temperature, high-precision
Temperature

Min.: 500 °C
(932 °F)

Max.: 1,800 °C
(3,272 °F)

Description

Stability ±0.1℃ or 0.1%rd (whichever is greater) Emissivity > 0.995 Aperture 50 mm diameter The BL679 is a ultra-high temperature blackbody calibration source utilizing a digital indicating temperature up to 1800℃. A precision thermocouple N temperature sensor is embedded in the blackbody emitter, providing high accuracy and repeatability. The temperature controller uses the industry standard PID algorithms to control the emitter temperature to within 0.1℃ of the set points. The black body emitter mechanism uses a resistive heating device that provides a long life, short stabilization times, and stable temperature control. FEATURE • Temperature ranges 1500℃, 1600℃, 1700℃, 1800℃ • Emissivity is better than 0.995 • Temperature stability is up to 0.1℃ • Temperature uniformity is up to 0.15℃ • 50 mm aperture diameter is compliance with most of D:S of high temperature units • Build-in temperature correction function APPLICATION • Infrared temperature sensors • Infrared thermal imaging systems • Spectrographic analyzers • Radio meters • Flux meter
