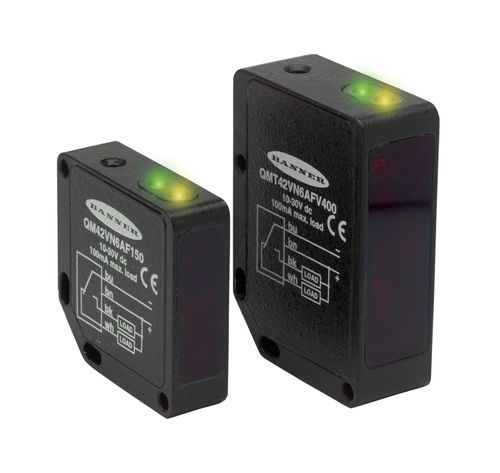

Diffuse reflective photoelectric sensor QM42 & QMT42 SERIES
through-beamrectangularinfrared

Diffuse reflective photoelectric sensor - QM42 & QMT42 SERIES - BANNER ENGINEERING CORP. - through-beam / rectangular / infrared
Diffuse reflective photoelectric sensor - QM42 & QMT42 SERIES - BANNER ENGINEERING CORP. - through-beam / rectangular / infrared
Diffuse reflective photoelectric sensor - QM42 & QMT42 SERIES - BANNER ENGINEERING CORP. - through-beam / rectangular / infrared - image - 2
Add to favorites
Compare this product
Go to the BANNER ENGINEERING CORP. website for more information

Characteristics

Sensing mode
diffuse reflective, through-beam
Housing
rectangular
Type of beam
infrared, LED
Other characteristics
rugged, IP67
Maximum range

Min.: 10 mm
(0.4 in)

Max.: 6,000 mm
(19.7 in)

Description

Easy Mount Rectangular Housing Sensor - Features compact, low-cost dc sensors in NEMA 6 (IEC IP67) die-cast housings - Delivers outstanding immunity to electrical noise - QM42 series: Available in opposed, polarized retroreflective, diffuse, short-range adjustable-field and plastic fiber optic sensing modes - QMT42 series (slightly larger): Available in diffuse, fixed-field and long-range adjustable-field sensing modes - Offers the longest range—6 m—for any diffuse sensor on the market (QMT42) - Includes marginal gain and Power ON indicator
