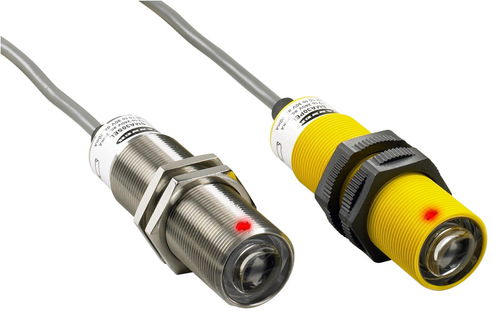

Through-beam photoelectric sensor SM30 SERIES
cylindricalinfraredLED

through-beam photoelectric sensor
through-beam photoelectric sensor
through-beam photoelectric sensor
through-beam photoelectric sensor
Add to favorites
Compare this product


Characteristics

Sensing mode
through-beam
Housing
cylindrical
Type of beam
infrared, LED
Other characteristics
digital, analog, high-power
Maximum range

150 m
(492'01" )

Description

150 m Range Opposed Mode Barrel Sensor - Features EZ-BEAM technology, with specially designed optics and electronics for reliable sensing without adjustments - Offers choice of 30 mm plastic or stainless-steel threaded barrel, depending on application - Operates in opposed mode with very high excess gain - Offers high-power sensing with a range of 200 m - Available in models with standard 10 to 30V dc with Bi-Modal NPN/PNP outputs or 24 to 240V ac with SPST solid-state output - Uses positive sealing to eliminate even capillary leakage lens is quad-ring sealed - Exceeds IEC IP67 (NEMA 6P) ratings ideal in equipment washdown environments - Includes advanced diagnostics to warn of marginal sensing conditions or output overload (dc models) - Offers three modulation frequencies to minimize optical crosstalk potential between adjacent sensor pairs
