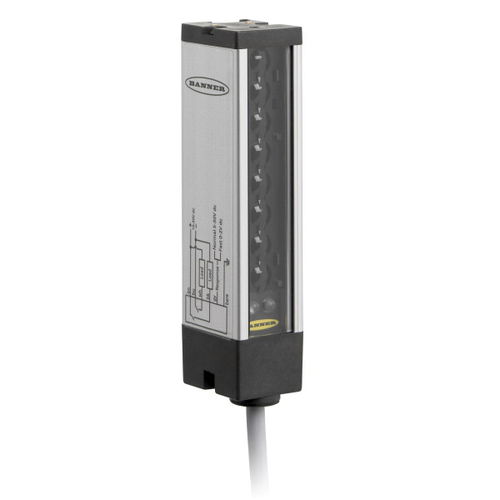

Multibeam light curtain LX SERIES
IP65

multibeam light curtain
multibeam light curtain
multibeam light curtain
multibeam light curtain
Add to favorites
Compare this product

Characteristics

Type of beam
multibeam
Protection level
IP65

Description

Small and Flat Object Detection - Generates a multiple-beam infrared pattern for extraordinary sensitivity to small objects - Detects objects as small as 5.6 mm and extremely flat objects that pass anywhere through the light screen - Responds in 0.8 to 3.2 milliseconds—faster than comparable products, even at its slowest response speed - Enables automated systems to operate at peak efficiency - Ideal for die-protection (part ejection verification), small part, parcel handling and sorting by height - Available in 67, 143 or 295 mm lengths and two sensing ranges: 100 to 200 mm and 300 mm to 2 m - Features rugged silver anodized housing with IP65 rating - Uses integrated T-slot mounting channel for unique mounting flexibility

Catalogs
