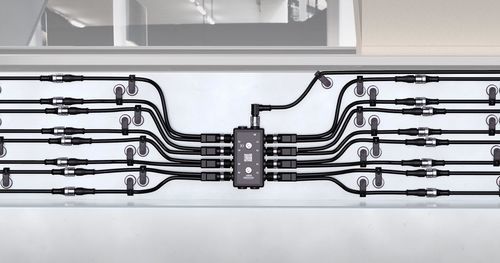

5-leads splitter cable S15YA24-M124-M124-0.3

flexible

Overview
Splitter cables are used to make cables more versatile in applications. When attached to a cable they are able to power multiple devices, cutting back on cost of accessories and adapting to changing needs. Available for AC, DC, and AC/DC powered devices.

Features

• Splits into two, three, or four connectors
• Available with M12 or M8 connections
• Used to power multiple devices with one cable
• Choose from different pin option models

Available options (selection / configuration)

• Connector styles / Trunk connector type: Flying Leads, M12, M8
• Trunk gender: Female, Male
• Trunk number of contacts: 3, 4, 5, 8, 12, 17 (varies by model)
• Number of branches: 3-port, 4-port, (also 2, etc. depending on model)
• Trunk lengths (meters): examples include 0.00, 0.20, 0.3, 0.30, 0.91, 1, 1.00, 2.00, 2.44, 2.50, 3.05, 4.57, 4.6, 7.60, 7.62 (availability depends on part)
• Wiring / wiring styles: Combiner, Custom, Dual Sensor, Parallel

Downloads (representative documents)

• A-Code M12 Male to M8 Female Splitters (PDF)
• 4-pin A-Code M12 Male to 4-pin A-Code M12 Female Splitters (PDF)

Caractéristiques / spécifications techniques

• Product family: Splitter cordsets / splitter cables
• Connector types: M12 A-code, M8, flying leads
• Branch counts: 2, 3, 4 (common configurations)
• Trunk contacts: multiple contact-count variants (3, 4, 5, 8, 12, 17)
• Trunk lengths: multiple lengths available (see product config)
• Wiring options: combiner, parallel, dual-sensor, custom wiring
• Power compatibility: AC, DC, and AC/DC devices
• Use case: power multiple devices from one cable, adapt to changing needs, reduce accessory cost
