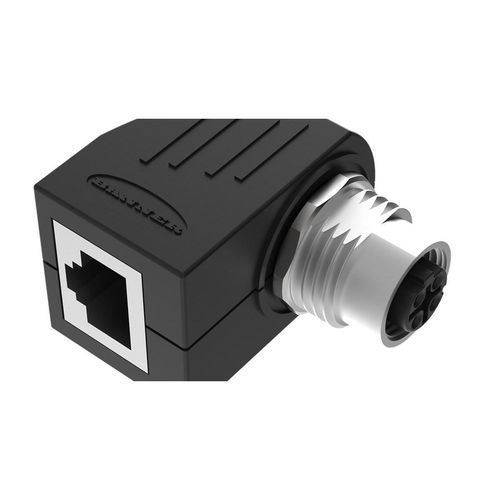

RJ45 adapter

M12-RJ45interfacefor electrical cabinet

Product overview Easily bring Ethernet signals into cabinets with Banner's M12 D-Code to RJ45 receptacle. This panel-mount bulkhead pass-through provides an environmentally‑resistant interface to route Ethernet (including Power over Ethernet) into control panels and enclosures. Available in straight and right‑angle orientations to suit different panel layouts. Each unit ships with a locknut for fast installation without additional hardware.

Key features

• Bulkhead receptacle that passes RJ45 Ethernet through an enclosure
• Environmentally‑resistant pass‑through design for sealing Ethernet into panels
• Connects RJ45 devices including PoE switches and standalone RJ45 cables
• M12 D‑code connector on the panel side to simplify bulkhead mating
• Offered in straight and right‑angle versions to accommodate panel space
• Locknut supplied with each receptacle (no separate locknut sourcing required)

Technical specifications

• Panel-side connector: M12 D‑code
• Field-side connector: RJ45 receptacle
• Form factor: bulkhead / panel-mount receptacle
• Environmental rating: designed as an environmentally‑resistant pass‑through for enclosures
• Versions: straight and right‑angle
• Accessories included: locknut supplied
