Electrical data cable washdowncorrosion-resistantmoisture-proof
Add to favorites
Compare this product
Characteristics
- Type
- data
- Protection
- washdown, corrosion-resistant, moisture-proof
- Configuration
- straight
- Core material
- steel
- Applications
- outdoor
- Number of wire
- 4 wires
- Material of the insulation
- PVC-sheathed
- Color of the insolation
- black
- Length
Min.: 1 m
(3'03" )Max.: 10 m
(32'09" )
Description
Overview

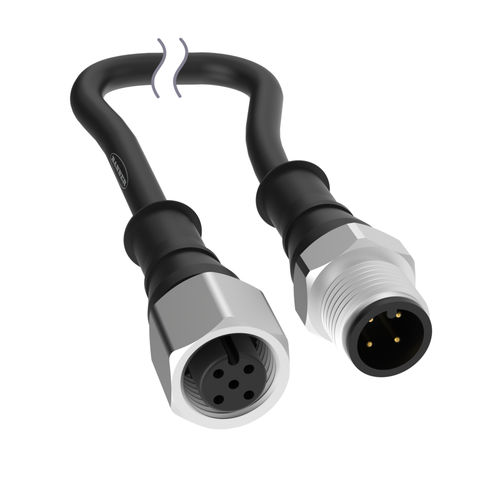

New M12 cordsets featuring stainless steel coupling nuts are designed for industrial environments where conventional nickel-plated or zinc hardware may corrode or seize. Stainless steel coupling hardware provides corrosion-resistant connections for reliable operation in outdoor, washdown and humid conditions.
Key features
Typical applications
Additional product information
The stainless steel coupling nuts provide a durable alternative to conventional nickel-plated or zinc hardware, reducing degradation and connection failures in harsh environments. Example product identifier seen on imagery: BC-M12F4-M12M4-22-X-SST (illustrative model reference).
Technical specifications
New M12 cordsets featuring stainless steel coupling nuts are designed for industrial environments where conventional nickel-plated or zinc hardware may corrode or seize. Stainless steel coupling hardware provides corrosion-resistant connections for reliable operation in outdoor, washdown and humid conditions.
Key features
- Double-ended M12 cordset, 4-pin, female-to-male, straight configuration
- Stainless steel coupling nuts for corrosion resistance and reduced risk of seizing
- Black PVC jacket
- Suitable for corrosive, outdoor, washdown and humid environments
- Available lengths: 1 m, 2 m, 5 m, 10 m
Typical applications
- Outdoor installations with exposure to moisture or corrosive agents
- Washdown areas requiring corrosion-resistant hardware
- Industrial humid or corrosive environments needing reliable M12 connections
Additional product information
The stainless steel coupling nuts provide a durable alternative to conventional nickel-plated or zinc hardware, reducing degradation and connection failures in harsh environments. Example product identifier seen on imagery: BC-M12F4-M12M4-22-X-SST (illustrative model reference).
Technical specifications
- Connector type: M12 double-ended cordset (female-to-male, straight)
- Pin count: 4-pin
- Coupling nut material: Stainless steel
- Jacket material/color: Black PVC
- Conductor size (indicative): 22 AWG
- Available lengths: 1 m, 2 m, 5 m, 10 m
- Suitable environments: Corrosive, outdoor, washdown, humid environments
