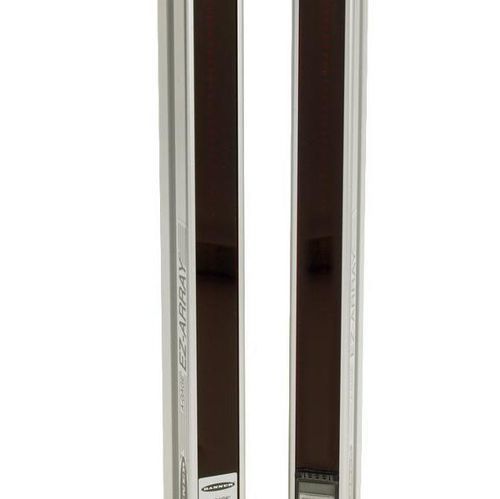

Measuring light curtain EZ-Array

multibeamthrough-beamwith integrated controller

Overview
EZ-Array measuring light curtains provide high-speed, precise process monitoring, profiling and web-guiding with straightforward installation. The receiver integrates controller functions, enabling basic setup without a separate controller, dedicated software or PC. Models are available with IO-Link, Modbus RTU and RS-485 communications.

Key features

• Interfaces: IO-Link, Modbus RTU, RS-485
• Controller integrated in receiver to reduce system complexity
• 14 measurement modes and 3 scanning methods for flexible configuration
• Two analog outputs and two discrete outputs plus serial output options
• Closely spaced infrared beams detect objects down to 5 mm; edge resolution 2.5 mm
• High excess gain for reliable detection of opaque materials
• Simple installation and setup; available in different communication configurations

Applications

• Edge and center guiding (web guiding)
• Loop tension control
• Hole sizing and profile measurement
• Parts counting and on-the-fly product sizing and profiling
• Carton sizing and dimensioning on conveyors
• Detection and profiling of clear or low-contrast objects (Clear Object variant)
• Log measurement, debarking control and other material-handling inspection tasks

Variants & outputs

• IO-Link versions for sensor network integration
• Modbus RTU / RS-485 versions for serial communications
• Analog outputs (2) for measurement signals
• Discrete outputs (2) for switching or status
• Serial output options for direct data communication

Detection and performance

• Sensing range: up to 4 m
• Array heights: 150 mm to 2400 mm
• Minimum detectable object width: 5 mm
• Edge resolution: 2.5 mm
• High-speed response suitable for profiling, web-guiding and high-throughput inspection

Other product notes

• Multiple measurement modes and scanning methods to match varied applications
• Clear-object versions available for translucent materials and short-range, low-contrast detection

Specifications

• Product family: EZ-Array Series
• Function: measuring light curtain / measuring array for profiling and web-guiding
• Communications: IO-Link, Modbus RTU, RS-485
• Outputs: 2 analog outputs, 2 discrete outputs, serial output
• Measurement modes: 14 selectable modes
• Scanning methods: 3 selectable methods
• Sensing range: up to 4 m
• Array heights: 150 mm to 2400 mm
• Minimum detectable object width: 5 mm (edge resolution 2.5 mm)
• Clear-object variants available for low-contrast/translucent detection
• Controller integrated into receiver (basic setup without external controller)
