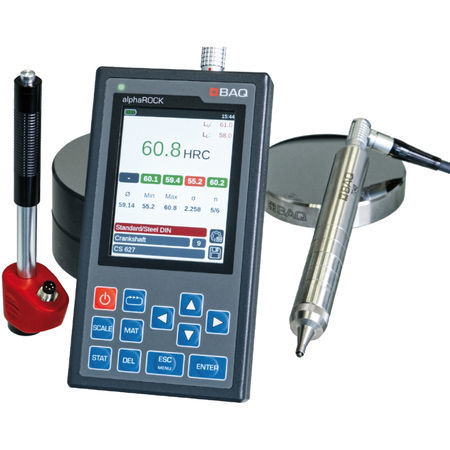

Rockwell hardness tester alphaROCK

BrinellVickersLeeb

Short description
Portable combined UCI/Leeb hardness tester for inspection of metals on machine parts, welds, coatings and hardened components, also at difficult-to-access locations.

Key features

• Fast and easy hardness testing
• Measurements according to DIN 50159 and ASTM A1038 (UCI)
• Conversion according to EN ISO 18265 and ASTM E140 (UCI)
• Measurements according to DIN EN ISO 16859 and ASTM A956 (Leeb)
• Robust metal housing
• Extensive memory and statistical functions
• USB-C and Bluetooth 5.0 for data transfer
• Optional DAkkS/ISO/ASTM calibration

Overview
alphaROCK combines BAQ's expertise from the alphaDUR and dynaROCK series, integrating UCI and Leeb methods in one compact, mobile device. Automatic detection of the measurement method and intuitive operation allow quick, flexible and accurate hardness measurements across a wide range of applications in laboratories, production, incoming goods inspection and field service. A broad accessory range enables adaptation to specific testing tasks, including multiple UCI probes, Leeb impact devices, test blocks and stands.

Delivery scope

• Main unit without probe
• Charging adapter
• USB cable
• Probe connection cable (UCI)
• USB-C adapter
• USB flash drive with manuals (PDF)
• Robust carrying case

Accessories

• UCI probes with various test loads (3, 10, 20, 30, 49 or 98 N)
• Special probes SL and SL-L2 for hard-to-reach locations
• Leeb impact devices (D, DC, C, D+15, DL, G)
• Probe supports for flat and curved surfaces
• High-precision stand (UCI)
• Probe handle (UCI)
• Carrier bag
• Certified UCI hardness test blocks (Ø 90x16 mm)
• Leeb test blocks with various hardness values and DAkkS certificates

Downloads

• Product data sheet
• Spec sheet
• User manual (EN/DE)
• Quick guide

Technical data
Hardness scales (UCI): HV, HB, Rockwell (HRC, HRB, HRA, HRD, HRE, HRF), HR45N, HK, tensile strength (N/mm²)

Hardness scales (Leeb): HRC, HB, HV, HRB, HL, HS, tensile strength (N/mm²)

UCI probe test loads: 3, 10, 20, 30, 49 or 98 N (HV0.3–HV10) depending on probe

Impact devices (Leeb): D, DC, C, D+15, DL, G

Display: 3.5" TFT color, 640 x 480 px

Statistics: mean, standard deviation, min, max

Memory: >1,000,000 data records with timestamp and good/bad rating

Power supply: Built-in Li‑Ion battery, 6800 mAh, approx. 12 h operating time

Interface: USB-C (charging and data transfer), connector for UCI probes and impact devices, Bluetooth 5.0

Dimensions and weight: 154 x 84 x 23 mm; 430 g

Characteristics / specifications

• Combined UCI and Leeb measurement methods with automatic detection
• Robust metal housing for mobile and stationary use
• Large internal memory for >1,000,000 records
• Extensive statistical and export functions
• USB-C and Bluetooth 5.0 connectivity
• Optional DAkkS/ISO/ASTM certification
• Made in Germany
