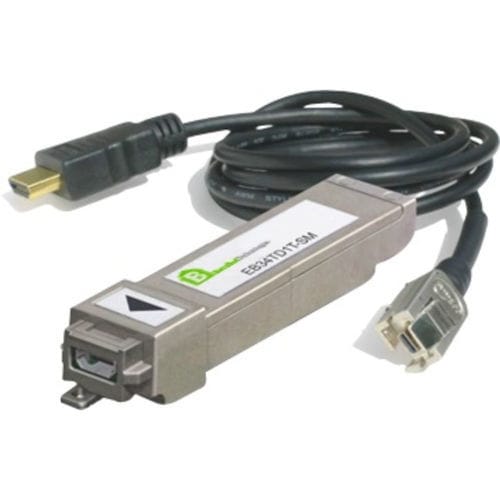

HDMI video transmitter EB34TD1T-SM

8-channel

The EB34TD1T-SM is an electrical emSFP transmitter module designed to convert SDI to an HDMI signal output without scaling artifacts. The video sfp EB34TD1T-SM is an 3G/HD/SD SDI to HDMI1.4 and DVI1.0 video sfp (emSFP) converter. This video SFP is designed to convert 3G/HD/SD SDI to HDMI 1.4 signal without scaling artifacts. Up to 8 channels of 3G/HD/SD-SDI audio channels are re- embedded in the HDMI stream. The SFP features a HDMI type D connector with a retention clip that locks with cables EB00CC04-02C (DVI) and EB00CC04-02C (HDMI). SMPTE 424M, SMPTE 292M, and SMPTE 259M, SMPTE 425A (Mapping 1), SMPTE 425B (372M Mapping) SDI Reclocked Loopback to host connector Supported format: 525/625, 720p/1080i (50/ 59.94/60 Hz), 1080p (23.98/24/25/29.97/30/50/ 59.94/60 Hz) HDMI Output: 24bit (3x8bit), BW=150MHz RGB 4:4:4, YCbCr 4:2:2, YCbCr 4:4:4 DVI 1.0 Mode RGB Range (Full/SMPTE) Up to 8 channel audio embedding (PCM) HDMI 1.4 type D connector HDMI type D plug with locking mechanism available (EB00CA04 Cable Assembly series) Hot-pluggable Control via serial interface including: EDID reading HDMI interface configuration Audio mapping Voltage & Temperature Monitoring Module Information Low Power Consumption – typical 1032mW Single Supply +3.3V Pb-free and RoHS compliant Operating temperature range: -20°C to 80°C 64.1mm x 13.4mm x 8.6mm SFP Package Ganged Cages & Stacked Cages mounting supported
