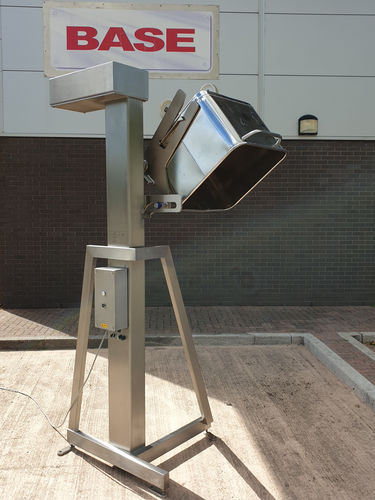

Electric tipping station BTM/300/1800/B

binstainless steel

This Single Pillar Tipper 200 Litre tote bin tipper is designed to lift and tip at a discharge height of 1800mm. The Single Pillar Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The unguarded Single Pillar Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure. Single Pillar Tipper Electrical Control This Single Pillar Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The unguarded Single Pillar Tipper operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Single Pillar Tipper to operate. As soon as either button is released, the Single Pillar Tipper will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.
