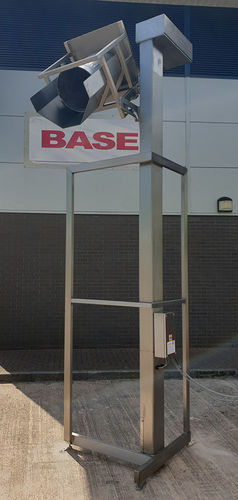

Electric bin tipper BTM/200/3200/B

This Waste Tipper is designed to lift and tip a recycling waste trash can at a discharge height of 3200mm. The Waste Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The unguarded Waste Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure. Waste Tipper Electrical Control This Waste Tipper is fitted with an IP65 Stainless Steel Terminal Box which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control was incorporated into the Main Control System by others.
