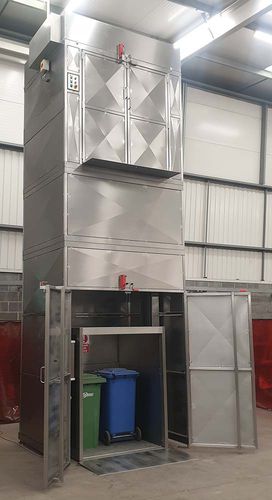

Electric goods lift PLM/600/3900/B/G

for warehousefor palletstainless steel

This Double Pillar Dolav Platform Lift has a Safe Working Load of 600 Kgs and a lift height of 3900mm. The lifting platform was 1300mm wide x 1300mm deep to allow a Dolav Box to be loaded. The Dolav Platform Lift was manufactured from Grade 304 stainless steel, was a welded construction throughout and was designed to be bolted to the floor. At the upper level, there is a landing plate to allow easy unloading. The lifting is accomplished via chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column. Safety Guard to BS EN 14120:2015 Safety of Machinery Guards This Dolav Platform Lift safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 2.0mm stainless steel sheet to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard reached to a height of 2200mm above the upper floor level, having a pair of hinged doors at each level through which the Dolav Platform Lift can be loaded and unloaded. All doors were electrically interlocked to prevent the machine being operated with a door open and in addition, the doors are mechanically locked closed whilst the Dolav Platform Lift is running. Each pair of doors may only be opened when the lifting carriage is at the appropriate level.
