Pallet lift PLM/2P/1000/1545/B/G

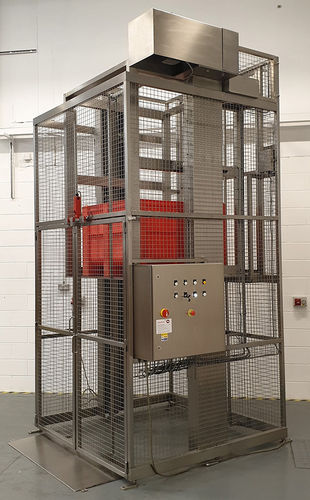

This Food Standard Pallet Lift has a Safe Working Load of 1000 Kgs and a lift height of 1545mm. The lifting platform wase big enough to allow a standard pallet (1200 x 1000mm) to be loaded using a hand pallet truck. At the upper level, there was a landing plate to allow easy unloading. The Food Standard Pallet Lift was manufactured from Grade 304 stainless steel and is a welded construction throughout. The Food Standard Pallet Lift is designed to be bolted to the floor without the need for a pit. The lifting is accomplished via chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column. Safety Guard to BS EN 14120:2015 Safety of Machinery Guards The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 3mm wire, 40mm aperture stainless steel weld mesh to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. This guard will reach to a height of 2200mm above the upper floor level, having a pair of hinged door at each level through which the Food Standard Pallet Lift can be loaded and unloaded. Each pair of doors is electrically interlocked to prevent the Food Standard Pallet Lift being operated with a door open and in addition, the doors are mechanically locked closed whilst the Food Standard Pallet Lift is running. Each door may only be opened when the lifting carriage is at the appropriate level.
