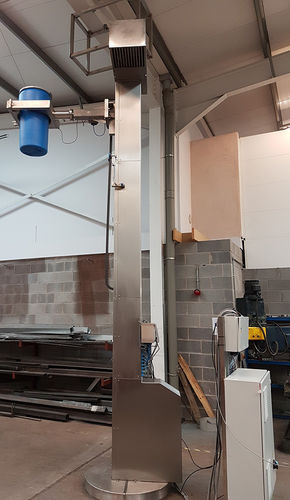

Column type drum lifter SPL/250/4640/90º/B/G

stainless steel

This ATEX Drum Lift is designed to lift a 200 Kgs Drum to a height of approximately 4640mm. The ATEX Drum Lift was constructed from Grade 304 stainless steel with a DP240 Grit brushed finish. The lift would be bolted to the floor and would be braced above the ATEX Drum Lift to a substantial structure such as a mezzanine floor. The Drum was loaded into the lift carriage and clamped appropriately at the ground floor. Once secured, the drum was lifted and lowered using a ball screw and motor gearbox mounted at the top of the lift. The electrical motor gearbox was fitted with a quick acting brake that is separately excited and powered to release. The ball screw was a 50mm diameter x 20mm pitch rolled ball screw with an appropriate lifting nut. There was a second motor gearbox that rotated the ATEX Drum Lift at the full up position, 90 degrees clockwise, to allow the Operator at the upper level to align the drum and interface with the receiving vessel. The drum was Ø457mm, with a height of 262mm and was manufactured from grade 316 stainless steel with the contents at atmospheric pressure.
