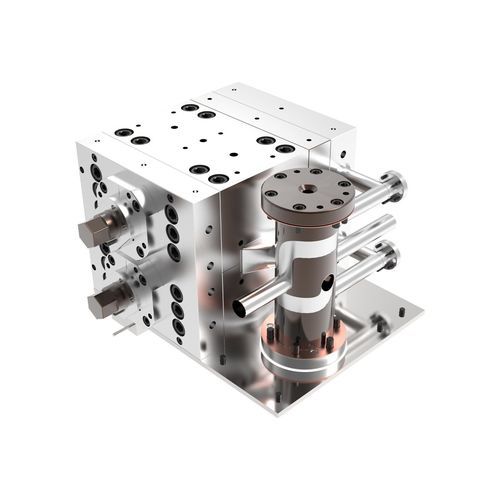

Coextrusion feedblock

Subtitle
Multi-layer feedblock for co-extruded thermoforming sheet by battenfeld-cincinnati.

Overview
These feedblocks extend battenfeld-cincinnati equipment for thermoforming sheet extrusion and are manufactured in-house. Based on decades of experience in designing and optimizing flow channels, the feedblocks deliver controlled melt and layer-thickness distribution. The design supports flexible production of mono- and multi-layer sheet on the same feedblock and is suitable for standard PP, PS and PET sheet and board extrusion as well as high-performance lines with high-speed extruders and Multi-Touch roll stacks. Flow channels are optimized by finite element calculations for consistent processing behavior.

Your Advantages

• Modular design for three or more layers
• Connection for two extruders
• Adjustable layers during production
• Precise layer-thickness distribution
• Suitable for PP, PS and PET

Our Offer

• Designed and manufactured in-house by battenfeld-cincinnati
• Special design enabling both mono- and co-extrusion on the same equipment
• Individually profiled bolt enabling different top and bottom layer thicknesses

Technical characteristics / specifications

• Product type: Multi-layer feedblock for thermoforming sheet
• Manufacturing: In-house design and production
• Layer capability: Modular for three or more layers; flexible mono- and co-extrusion on same feedblock
• Extruder connection: Configuration available for two extruders
• Adjustability: Layer adjustments possible during production (melt stream and layer distribution)
• Materials suitable: Polypropylene (PP), Polystyrene (PS), Polyethylene terephthalate (PET)
• Compatibility: Suitable for standard sheet and board extrusion and high-performance extrusion lines with high-speed extruders and Multi-Touch roll stacks
• Flow channel design: Optimized using finite element calculations for consistent processing behavior and layer-thickness distribution
• Layer profiling: Individually profiled bolt enables different top and bottom layer thicknesses
