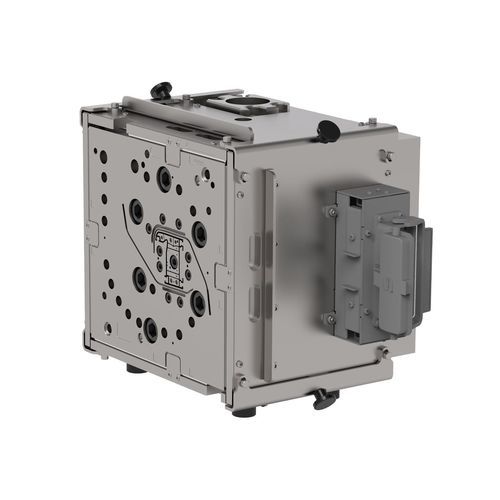

Technical profile extrusion die

for window profilesco-extrusionfor profiles

Overview
Expertise all along the line
Tooling engineered for high output, energy-efficient production and consistent end-product quality. battenfeld-cincinnati cooperates with established tooling partners to supply dies and tooling assemblies tailored to complete profile extrusion lines.

Product description
Partners deliver profile tooling adapted to customer requirements and optimised for seamless integration with other line components. Tooling solutions cover mono- and co-extrusion designs and are suitable for a wide range of extrudable polymers.

Applications and processing ranges

• PVC window profiles and WPC/NFC profiles: conical and/or parallel twin-screw extruders; processing range approx. 10–1,000 kg/h; mono- or co-extrusion (core, single or multi-layer).
• Technical profiles (almost all extrudable polymers): single- or twin-screw extruders; processing range approx. 2–300 kg/h.

Your advantages

• Complete profile lines from a single source
• Worldwide technical and process support from battenfeld-cincinnati
• Cost-optimised, customer-specific tooling solutions

Downloads
App_Profile_EN.pdf (3 MB)

Characteristics / Technical specifications

• Suitable applications: PVC window profiles, WPC/NFC profiles, technical profiles from almost all extrudable polymers
• Extruder types: conical and/or parallel twin-screw extruders (PVC/WPC/NFC); single- or twin-screw extruders (technical profiles)
• Processing ranges: 10–1,000 kg/h (PVC window profiles, WPC/NFC); 2–300 kg/h (technical profiles)
• Production processes: mono-extrusion or co-extrusion (core, single or multi-layer)
• Tooling availability: mono- and co-extrusion toolings; partners adapt tooling to customer requirements and line components
• Focus: high output, energy-efficient production and consistent end-product quality
