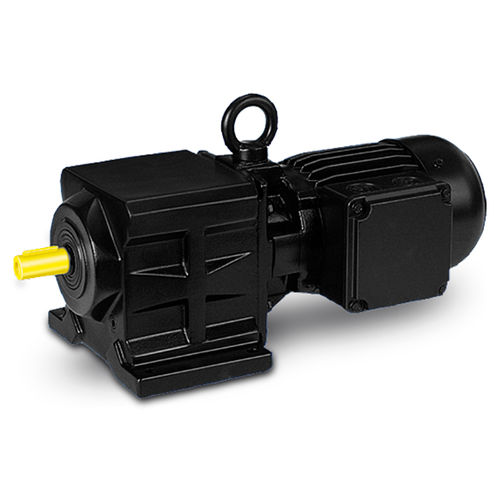

Submersible gear-motor BG series

AChelicalcoaxial

Our most selling and economical unit, the BG gear motor, sets new standards for reliability and economy and includes unparalleled standard features. Our IP68 design geared motors are derived from the standard B2000 range and are most suitable where it is required to convey or transport foul, waste, river or rain water, and all types of sludge-containing waters in communal or industrial areas. They are frequently used in agitators for mixing, homogenising, etc. or in extremely wet areas or completely submersed under water. Product Features • Output Speeds:0,3 ... 450 min-1 • Special sealing concepts:for maximum leakage protection • Reinforced bearings for higher strength and longer service life • Shafts:available on request in V4A steel or coating • Motor Connection • Standard with cast terminal box • Optional with special plug connection • Additional features: • Special design for continuous submersible operation • Electronic leakage detection available on request • Brakes available in IP68 design • Water depths of 5m (deeper on request) • Corrosion category Im2 based on DIN ISO 12944-5
