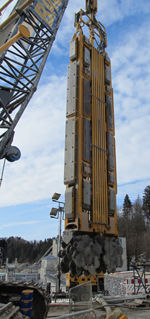

Wheel trencher BC 48

crawlerfor civil engineering

Overview
BC 48 is the largest trench cutter in the BC family, engineered for excavation of wide trenches in foundation and civil engineering works. Its extra-large frame and configurable equipment allow adaptation to varying soil conditions by selecting suitable cutting wheels and gear types. The machine is designed for projects requiring trench widths up to 2,000 mm and high torque output.

Product brochure
BC_48_DE-EN_905_840_1_2.pdf (PDF, 1.73 MB)

Key data

• Total height: 12.6 m
• Trench length: 2,800 mm / 3,200 mm
• Trench width: 800 - 2,000 mm
• Total weight: 34 - 53 t
• Max. torque: 91 / 112 kN·m

Technical specifications

• Model family: BC (largest and most powerful in the trench cutter family)
• Configurable equipment: selectable cutting wheels for different soil types and variable gear options
• Maximum trench width: up to 2,000 mm
• Available trench lengths: 2,800 mm or 3,200 mm
• Total height: 12.6 m
• Operating weight range: 34 t to 53 t
• Maximum torque options: 91 kN·m or 112 kN·m
• Flap travel (upper/lower): 120 mm / 120 mm
• Rotation speed: 0–25 rpm
