Wheel trencher

motorized cartfor civil engineering

Overview

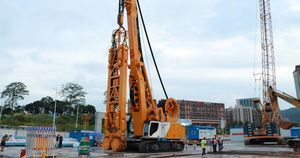

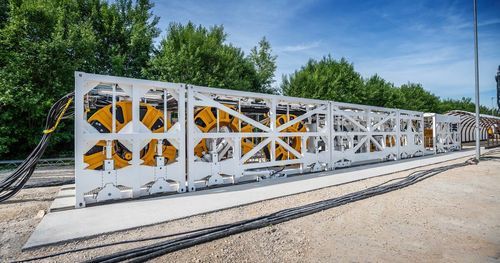

The BAUER Cube System is a fully electric, compact cutter system engineered for specialist foundation engineering and diaphragm wall construction. Electrically driven components eliminate on-site combustion emissions and enable low-noise, low-dust operation suited to urban and environmentally sensitive projects.

Key features

• Fully electric compact cutter system
• Resource-efficient design reducing energy use and site emissions
• Low dust and low noise emissions to limit environmental and community impact
• Designed for diaphragm wall construction and trench cutting applications

Product brochure
Product brochure available as a PDF (approx. 7.2 MB).

Technical specifications

• Commercial designation: BAUER Cube System
• Transport dimensions per container: 6.06 x 2.90 x 2.44 m
• Trench width: 640 mm – 1000 mm
• Trench length: 2400 mm
• Cutting depth: 40 m
• Total weight: 56 t
