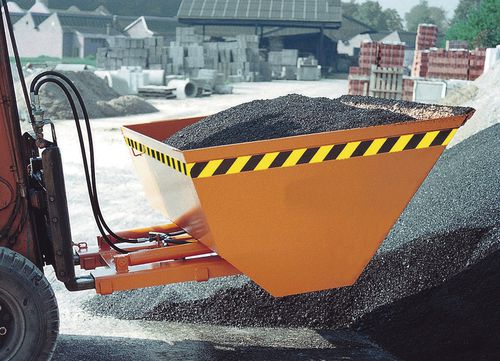

Face shovel bucket HVR series
for forklift truckstilting

face shovel bucket
face shovel bucket
face shovel bucket
Add to favorites
Compare this product

Go to the Bauer website for more information

Characteristics

Type
face shovel
Load-bearing
for forklift trucks
Other characteristics
tilting
Bucket width

1,030 mm, 1,230 mm, 1,630 mm, 1,830 mm, 2,030 mm
(41 in, 48 in, 64 in, 72 in, 80 in)

Capacity

0.5 m³, 0.75 m³, 0.8 m³, 1 m³, 1.5 m³
(17.66 ft³, 26.49 ft³, 28.25 ft³, 35.31 ft³, 52.97 ft³)

Bucket weight

275 kg, 310 kg, 326 kg, 392 kg, 474 kg
(606.27 lb, 683.43 lb, 718.71 lb, 864.21 lb, 1,044.99 lb)

Description

Hydraulic shovel with 2 cylinders for controlled emptying „ sturdy frame and shovel with steel trim made of special steel „ controlled movement (forwards and backwards) „ emptied hydraulically (operated by the forklift hydraulic system) „ simple pick-up: insert forks „ can be secured to prevent slipping
