IBC container containment bund

for drumssteelsheet steel

Overview

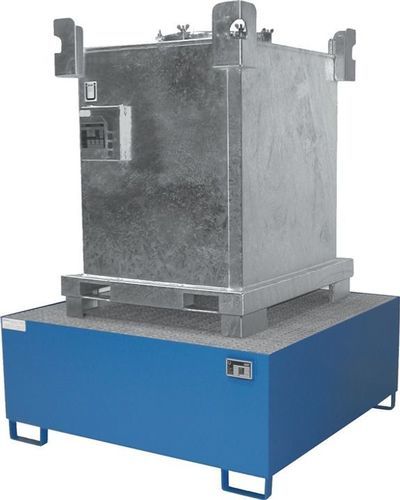

This steel spill containment pallet is intended for the safe storage of IBC containers and drums. It is designed for use with flammable and water-polluting liquids and facilitates secure handling and inspection.

Technical specifications

• Material: steel sheet (3 mm), galvanized grating; surface painted (light blue) / galvanized
• Capacity: 1000 L
• Dimensions: L1460 x W1460 x H630 mm
• Grating: galvanized, load capacity up to 1000 kg/m²
• Steel thickness: 3 mm
• Color: RAL 5012 (blue)
• Approval: According to StawaR, approved for flammable liquids up to a maximum density of 1.9 kg/L (declaration of conformity / ÜHP)
• Fork entry / underclearance: 100 mm (fork pocket 100 mm) — facilitates movement
• DirectIndustry reference: 0017144202
• EAN: 4052462000254

Applications

• Storage of IBC containers and drums containing flammable or water-polluting liquids
• Use in workshops, warehouses, chemical storage areas and maintenance zones where secondary containment is required

Handling & maintenance

• Galvanized grating can be removed for inspection and cleaning; forklift pockets enable safe transport on level surfaces
• Follow local regulations for hazardous liquid storage and ensure correct installation and regular inspection

Ordering information

• DirectIndustry reference: 0017144202 — EAN: 4052462000254
