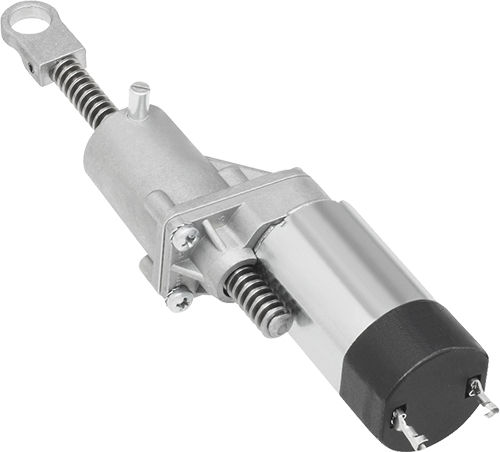

Electric actuator Type 100linearscrewspur gear
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Technology
- screw, spur gear
- Motor
- DC
- Other characteristics
- compact
- Stroke
Min.: 180 mm
(7.087 in)Max.: 426 mm
(16.772 in)- Force
Min.: 250 N
Max.: 1,400 N
- Speed
Min.: 5 mm/s
Max.: 40 mm/s
Description
Compact DC screw jack actuator. Available with two alternate spur gear variants and lead screw pitches. Suitable for controlled inhibited operation with max. current 2 Amps.
Catalogs
Type 100
2 Pages
