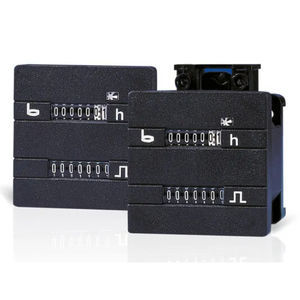

Hour counter AC 256 – 271.2

analogelectromechanicalfor automotive fluids

BAUSER offers – especially for your vehicle technology – hour counters with different housing variants. For power supply, you can choose between the classical plug- or terminal connection. Accessories and special types at additional cost: Variant for 20 to 100 Hz operation: order code i.e.: 250/943 Rubber seal: for additional sealing (please indicate for which type it is required) Spring wire bracket: optionally, if there is only little space available – but only up to maximum 48V Housing: Plastic, black Reset: No Counting range: 99999,99 h Digits height: 1,8 x 3,6 mm (with lens), white on black, decimals black on white Voltages: 115 or 230 V AC Special voltages (at additional cost): 12, 24 or 42 V AC Voltage tolerance: ±10 % Frequency: 50 or 60 Hz – (on request 20 to 100 Hz operation) Current consumption: Approx. 8 mA Protection: Housing IP 65 (front) DIN 40050: Terminals: IP 00 Ambient temperature: –30 °C to +80 °C Fixing: Retaining clipretaining clip Connections: Terminals or plugs (straight or bent) Approvals: CE , UL Weight: Approx. 35 g Housing: Plastic, black Reset: No Counting range: 99999,99 h (new – two decimals) Digits height: 1,8 x 3,6 mm (with lens), white on black, decimals black on white Voltages: 12 – 24 V DC Special voltages (at additional cost): on request Voltage tolerance: - Frequency: - Current consumption: Approx. 5 - 15 mA Protection: Housing IP 65 (front) DIN 40050: Terminals: IP 00 Ambient temperature: –20 °C to +80 °C
