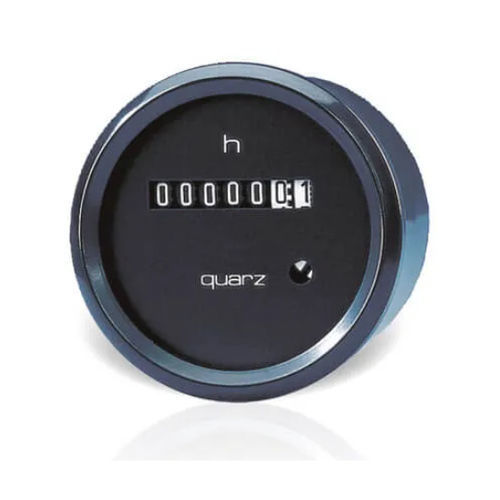

Time counter 587

houranalogelectromechanical

Hour counters, 10 – 80 V DC, ø 52 mm with chromed or black-chromed 3-edge-frontal ring These instruments meet the high-level requirements for hour counters in construction machines, fork lift trucks or other vehicles. The quartz-controlled electronic and the known BAUSER housing technology offer a basis for optimum value for money. In large quantities it is possible to print your logo on the counter. Reset: No Counting range: 99999,99 h Digits char. height: 1,5 x 3,5 mm, white on black, decimals black on white Voltage: 10 – 80 V DC (1,4 – 15 mA) Special voltages (at additional cost): 80 – 220 V DC (1,5 – 4,5 mA) Protection class (DIN 40050): Housing: IP 65 (front) Terminals: IP 00 Ambient temperature: –40 °C to +80 °C Fixing: Metal bolt Approval: CE Operation indication: Yes Connection: Short circuit and reverse battery protected Vibration resistance: Tested on 3 levels at 45 Hz, amplitude ± 0,5 mm each level, electronic and plastic version = little specific weight Time divergence: Only 0,01 % in 24 h; compared to the electromechanical counters no after-running differences arise on the indication Weight: Approx. 100 g
