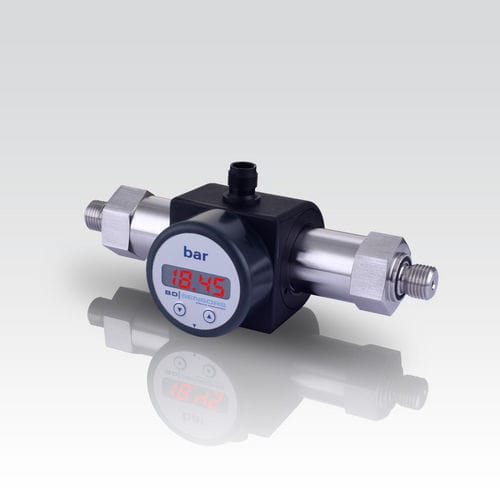

Differential pressure transmitter DMD 831piezoresistiveanalogthreaded
Add to favorites
Compare this product
Characteristics
- Pressure type
- differential
- Technology
- piezoresistive
- Output
- analog
- Mounting
- threaded
- Material
- stainless steel
- Protection level
- IP65, IP67
- Applications
- for boiler, for HVAC systems
- Other characteristics
- two-wire, CE, OEM, with LED display, temperature-compensated, custom-made, RoHS, with selectable measurement range, fixed-range, wet/wet
- Pressure range
Min.: 0 bar
(0 psi)Max.: 70 bar
(1,015.26 psi)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 125 °C
(257 °F)
Description
Features:
- differential pressure 0 ... 1 bar bis 0 ... 70 bar
- display mode selectable: P+, P-, ∆P
- display and pressure ports rotatable
- 2 piezoresistive stainless steel sensors
