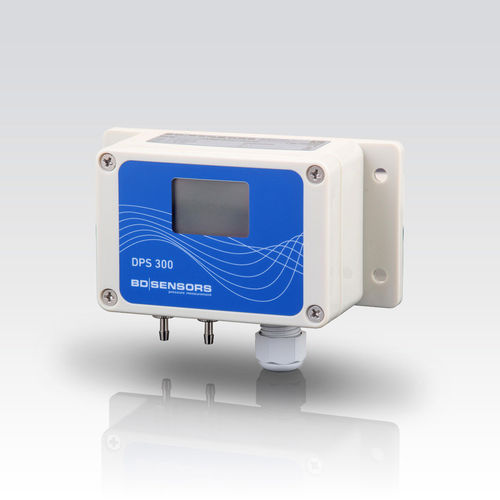

Differential pressure transmitter DPS 300
piezoresistiveanalogwall-mounted

differential pressure transmitter
differential pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
differential
Technology
piezoresistive
Output
analog
Mounting
wall-mounted
Other characteristics
two-wire, compact, CE, temperature-compensated, OEM, custom, RoHS, with selectable measurement range, multifunction, with LCD display, with integrated amplifier, high-overpressure
Pressure range

Max.: 1 bar
(14.5 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 70 °C
(158 °F)

Min.: -10 °C
(14 °F)

Description

The pressure transmitter DPS 300 was developed for the differential pressure measuring for dry, non aggressive gases and compressed air and can be used for several HVAC applications. The DPS 300 is a multi range transmitter with up to three adjustable ranges. The device is equipped with a two-line LC display optionally and can simply parameterised. Values, status of the contact and the unit are shown on the display. Features: - differential pressure 0 ... 1.6 mbar up to 0 ... 1.000 mbar - accuracy: 0.5 % FSO BFSL - current and voltage output signals in 2- and 3-wire systems - adjustable ranges - adjustable damping Optional Features: - LC-display, two-line - automatic zero adjustment - contacts (only in combination with display) - square root extraction (only in combination with display)
