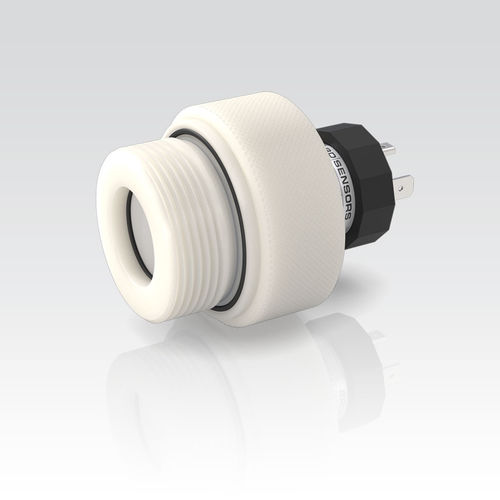

Capacitive pressure transmitter LMK 351

ceramicthreadedG 1 1/2

Product description
The screw-in transmitter LMK 351 is designed for measuring small system pressure and for hydrostatic level measurement in containers. It uses an in-house capacitive ceramic sensor element with a flush-mounted diaphragm, enabling reliable measurement in viscous and pasty media. A PVDF pressure port and a pure ceramic diaphragm (Al2O3 99.9%) are available for aggressive media. An intrinsically safe version (Ex ia) is offered for hazardous areas.

Features

• Nominal pressure ranges: 0 ... 40 mbar up to 0 ... 20 bar
• Accuracy: 0.35% FSO (optional 0.25% FSO)
• Pressure port: G 1 1/2" suitable for pasty and contaminated media

Optional Features

• IS version (Ex ia) for gases and dusts
• PVDF pressure port for aggressive media
• Diaphragm: pure ceramic (99.9% Al2O3)
• Customer-specific variants

Areas of application

• Mechanical and plant engineering
• Laboratories
• Environmental industry

Media

• Aggressive media (with PVDF/ceramic option)
• Fuels and oils
• Water
• Viscous and pasty media

Downloads (available document types)

• Datasheets (German, English)
• Mounting instructions
• Operating manuals (standard and IS variants)
• Declarations of conformity / certificates
• Decontamination declarations

Technical specifications

• Model: LMK 351
• Sensor principle: capacitive ceramic sensor element, flush-mounted
• Nominal pressure ranges: 0 ... 40 mbar up to 0 ... 20 bar
• Accuracy: 0.35% FSO (optional 0.25% FSO)
• Pressure port: G 1 1/2" (standard); PVDF optional
• Diaphragm material: pure ceramic Al2O3 (99.9%)
• Suitable for viscous and pasty media due to flush-mounted design
• Intrinsic safety option: Ex ia
• Typical applications: small system pressure measurement, hydrostatic level in containers
• Documentation: datasheets, mounting instructions, operating manuals, certificates, decontamination declarations
