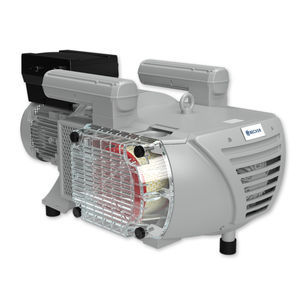

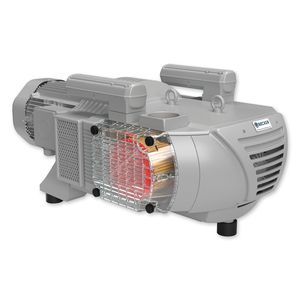

Rotary vane vacuum pump VT 4.8 oil-free24VDC230VAC
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- oil-free
- Supply voltage
- 24VDC, 230VAC, 220VAC, 380VAC, 460 VAC
- Number of stages
- single-stage
- Other characteristics
- compact, small, air-cooled, direct-drive
- Ultimate vacuum
150 mbar
(2.18 psi)- Flow rate
8 m³/h, 9.1 m³/h
(282.52 ft³/h, 321.36 ft³/h)- Power
0.37 kW, 0.44 kW
(0.5 hp, 0.6 hp)- Length
Max.: 253 mm
(10 in)Min.: 233 mm
(9 in)- Width
Max.: 136 mm
(5.35 in)Min.: 100 mm
(3.94 in)- Height
Max.: 179.5 mm
(7.07 in)Min.: 171.5 mm
(6.75 in)- Noise level
58 dB, 61 dB
- Weight
11.5 kg
(25.35 lb)
Description
Rotary vane vacuum pumps, oil-free
The VT 4.8 is a medium vacuum, dry-running displacement pump designed to operate on a continuous duty basis. It utilises self-lubricating, graphite composite vanes, requires only minimal maintenance, and requires no oil change.
100% dry-running (oil-less) operation
Long vane life
Continuous duty rated
Features
100% dry-running (oil-less) operation
Quiet operation
Long vane life
Continuous duty rated
Air-cooled
Single shaft direct drive
Compact design
Variety of motors available
Benefits
Low operation and maintenance costs
No cycling times
Quiet operation – no silencer enclosures necessary
Small footprint for space savings
Straightforward construction for fast and easy service on-site to reduce downtime
VIDEO
Catalogs
No catalogs are available for this product.
See all of BECKER‘s catalogsOther BECKER products

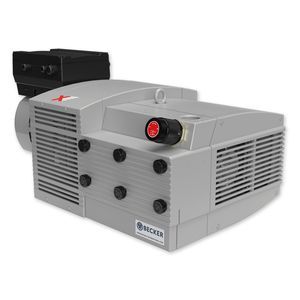

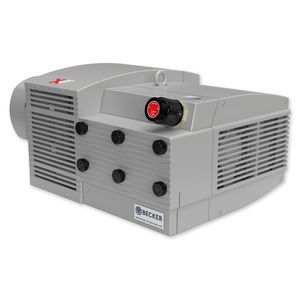

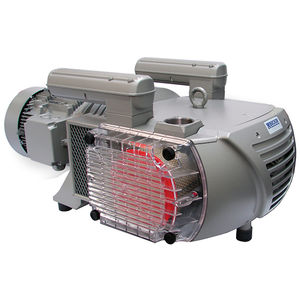

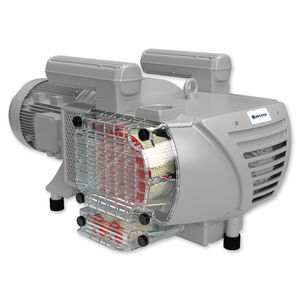

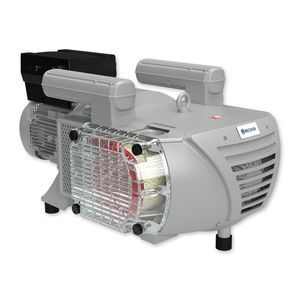

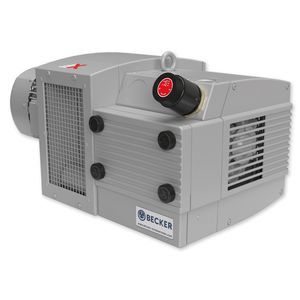

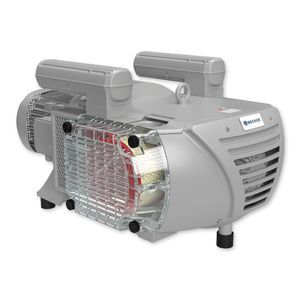

Rotary vane vacuum pumps, oil-free
