Compressor vacuum generators

Flow rate: 3.8, 4.2 m³/h
Ultimate vacuum: 100 mbar

Description This one-stage diaphragm pump works as a vacuum generator and as well as a compressor. All parts in contact with pumped media are made of aluminum and selected plastics (PTFE ...

Flow rate: 17.5 l/min - 21.5 l/min

The small pumps described on this page are membrane-type. They can be used both as vacuum pumps and compressors. In the latter version they can supply compressed air 100% oil-free up to a maximum 2 bar ...

Flow rate: 11.5 l/min - 15.5 l/min

Membrane vacuum mini pumps, with dc motor The mini pumps on this page are the same as described above, with a DC motor rather than an AC. The performances are also almost the same.

Flow rate: 12 m³/h - 405 m³/h
Ultimate vacuum: -22,000 Pa - -15,000 Pa

... creates a vacuum inside the device and leads a great volume of air towards its outlet. Therefore, a variation of the air supply pressure will modify the level of vacuum and the amount of sucked air. Features The ...

Flow rate: 8 l/min
Ultimate vacuum: 280 mbar

Contamination free pumping The Capex L2 vacuum pump/compressor provides a clean oil free vacuum and pressure source. Suitable for continuous- duty the Capex L2 is ideal for use in environmental ...

Flow rate: 42 m³/h
Ultimate vacuum: 100 mbar

Rocking Piston Utilising state of the art rocking piston technology, the RP40 P oil free compressor provides a source of clean, compressed air. Designed for continuous duty, the RP40 P incorporates a long life PTFE piston ...

Flow rate: 17, 16, 29 l/min
Ultimate vacuum: 190, 20 mbar

The D7 SE vacuum pump/compressor provides a clean oil free vacuum and pressure source. Suitable for continuous duty the D7 SE is ideal in medical and sampling applications where reliability ...

Flow rate: 7 l/min
Ultimate vacuum: -333 mbar

... can deliver an air displacement of 7l/min and an attainable vacuum of -333mbar. In addition, the unit is equipped with a 6mm O.D. hose nipple outlet and a class E coil insulation. This vacuum pump ...

Flow rate: 3 l/min
Ultimate vacuum: -533 mbar

The VP 0140 is a pump compressor that runs continuously on a 230 V rated voltage for 60 minutes. With only a weight of only 0.7 kg, this model is capable of reaching vacuum pressures up to -533 mbar and ...

Flow rate: 25 l/min
Ultimate vacuum: -467 mbar

The VP 0435A is a pump compressor that runs continuously on a 230 V rated voltage for 3 h.This model, with 2.3 kg weight, is capable of reaching vacuum pressures up to -467 mbar with a 25 l/min maximum ...

Flow rate: 55, 40 m³/h
Ultimate vacuum: 0.03 mbar

ECODRY plus Multi-Stage Roots Vacuum Pumps In terms of noise reduction, the dry vacuum pump ECODRY plus represents the summit of German engineering expertise. Non-contacting rotors with low vibration, ...

Flow rate: 6.1 m³/h - 62 m³/h
Ultimate vacuum: 0.02, 0.05, 0.01 mbar

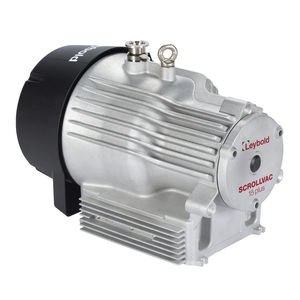

The dry compressing SCROLLVAC SC-D pumps operate on the principle of a scroll compressor. Two or more Archimedes spirals engaging each other. The vacuum is generated by reducing the volume of the pockets ...

Flow rate: 330, 270 m³/h
Ultimate vacuum: 0.01 mbar

SCREWLINE SP 250 The Screw Vacuum Pumps SCREWLINE were developed in view of the special requirements of industrial applications. The innovative design allows these pumps to be used whenever reliable, compact and low ...

Flow rate: 30 m³/h
Ultimate vacuum: -0.6 bar - 0.6 bar

... construction Seco DC dry-running rotary vane vacuum pumps/compressors have been specifically developed for paper handling in printing presses and postpress processing machines. They provide reliable ...

Flow rate: 48 m³/h
Ultimate vacuum: -0.6 bar - 0.6 bar

... construction Seco DC dry-running rotary vane vacuum pumps/compressors have been specifically developed for paper handling in printing presses and postpress processing machines. They provide reliable ...

Flow rate: 65 m³/h
Ultimate vacuum: 33 mbar

The Dolphin LB 0063 - 0184 A belong to the Busch product family of proven Dolphin Liquid Ring vacuum pumps. You will find more information on advantages, technology, accessories and spare parts, applications as well as ...

Flow rate: 2.4 m³/h - 5.04 m³/h
Ultimate vacuum: 12, 53 mbar

... as a small compressor. (DOP-80SP) SPECIAL FEATURES / FURTHER APPLICATIONS (Vacuum) Vacuum chuck, vacuum tweezers Absorption and transfer of automatic machines Vacuum ...

Flow rate: 0.4, 0.5, 1, 1.25 l/min
Ultimate vacuum: -300, -400, -500, -700 mbar

CMP-17,mini diaphragm compressor,micro vacuum pumps,diaphragm micro pump are well suited for transferring,evacuating and compressing air and neutral or corrosive gases as well as vapors. Technical ...

Flow rate: 10, 8, 7, 6, 5 l/min
Ultimate vacuum: -500, -600, -400, -700, -550 mbar

CMP40,miniature air compressors,micro pump are well suited for transferring,evacuating and compressing air and neutral or corrosive gases as well as vapors. Technical Features: 1.Uncontaminated flow. 2.Non-metallic ...

Flow rate: 1.8 l/min

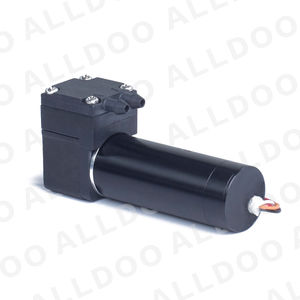

ALD130 miniature diaphragm micro vacuum air pump is a double diaphragm air micro pump which well suited for compressing air. Technical Features: 1.Double diaphragm air pump. 2.Uncontaminated flow. 3.Non-metallic ...

Flow rate: 81 m³/h - 2,000 m³/h
Ultimate vacuum: 0.08 mbar - 0.08 mbar

... models, equipped with LubriZero® system, are also available as follows: with one or two compressor roots in order to increase the pump suction capacity and reach high vacuum levelsin ...

Flow rate: 81 m³/h - 3,800 m³/h
Ultimate vacuum: 0.03 Pa - 0.03 Pa

... models, equipped with LubriZero® system, are also available as follows: with one or two compressor roots in order to increase the pump suction capacity and reach high vacuum levelsin ...

Flow rate: 8 m³/h - 102 m³/h
Ultimate vacuum: 150, 100 mbar

EVDR series The EVDR-series are Oil Free Rotary Vane vacuum pumps and compressors. Eurovacuum EVDR-series pumps & compressors are 100% oil less operation, Single Stage, Air-Cooled and ...

Flow rate: 4.5 m³/h - 1,650 m³/h

Rotating liquid ring vacuum pumps and blowers (commonly known as compressors) are used in various processes which demand suction and forced flows of oil-free gases, especially in the ...

Flow rate: 2.1, 2.5 m³/h
Ultimate vacuum: 0 mbar - 335 mbar

Product Details The easy to install, rugged 1531 Series offers oil-less operation to ensure the discharge air remains free of contamination from lubricants. They produce minimal noise or vibrations, which makes them well suited for ...

Flow rate: 0.5, 1 m³/h
Ultimate vacuum: 0 mbar - 335 mbar

Product Details The easy to install, rugged 1532 Series offers oil-less operation to ensure the discharge air remains free of contamination from lubricants. They produce minimal noise or vibrations, which makes them well suited for ...

Flow rate: 1.6, 1.9 m³/h
Ultimate vacuum: 0 mbar - 335 mbar

Product Details The easy to install, rugged 1032 Series offers oil-less operation to ensure the discharge air remains free of contamination from lubricants. They produce minimal noise or vibrations, which makes them well suited for ...

Flow rate: 168 ft³/min - 555 ft³/min

Kaeser's vacuum pumps: turnkey solutions for industrial vacuum applications Our rotary screw vacuum pumps feature a SIGMA profile airend specifically designed for vacuum ...

Flow rate: 100 m³/h - 28,000 m³/h
Ultimate vacuum: 0 mbar - 33 mbar

The 2BE1 series of liquid ring vacuum pumps and compressors is one of the most successful liquid ring pumps worldwide. A great number of models are available. The 2BE1 covers a broad range of suction ...

Flow rate: 12 l/min
Ultimate vacuum: 250 mbar

These small rocking compressor units are specifically designed for a very wide range of applications (dentistry, medical devices, hobbies and light industry). The design structure requires the installation of the compressor ...

Flow rate: 10 m³/h - 43 m³/h
Ultimate vacuum: -500 mbar - 500 mbar

... with only one shaft and direct drive produces robust, long-lasting pressure/vacuum generators compressors with low maintenance and running costs. These pressure/vacuum ...

Flow rate: 610 l/min - 4,200 l/min

Vacuum pump is an universal design with the feature to convert it to a single stage compressor. INDO-AIR Vacuum pump has a universal design with the feature to convert it to a ...

Flow rate: 8 l/min - 68 l/min
Ultimate vacuum: 15 mbar - 200 mbar

Diaphragm vacuum pumps and compressors from 8 to 68 l/min.Diaphragm vacuum pumps of the M41 series have a Ryton®-made pump body, the diaphragm and the gasket Viton or EPDM-made.The pumps ...

Flow rate: 18 ft³/min - 588 ft³/min

... Rand’s Vacuum Pumps are the number one choice for demanding applications, providing top operating efficiency combined with low maintenance. And best of all, these vacuum pumps are backed by Ingersoll ...

Flow rate: 49 l/min
Ultimate vacuum: -0.87 bar

Fast response Compact, lightweight Low sound level Compressed air driven Simple installation Port size:G3/8 Induced air:80.0 nl/m Function:Standard

Ultimate vacuum: 12, 13 psi

Vacuum Pump We now offer an Electric Vacuum Pump/Air Compressor option for use with all of our vacuum systems or your current system. This unit is compact, quiet and ...
