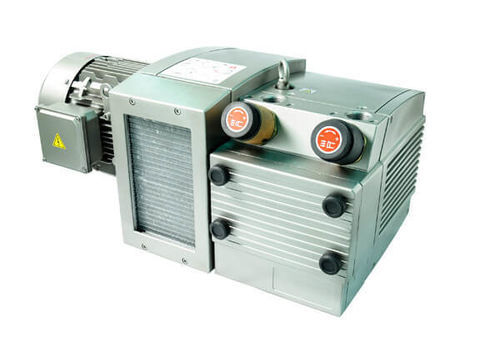

Rotary vane vacuum pump MVS-VP140

oil-freesingle-stagefor laboratory

Marpa Vacuum MVS-VP series products are 100% oil-free. They are single-stage, air-cooled and direct-driven. Equipped with top-quality graphite vanes (EK60) and feature quiet operation. This, combined with the compressors’ accessible design, results in minimal compressor downtime. Additionally, the pumps are fitted with standard pressure regulating valves. Because they do not use oil, these pumps are ideal for industrial applications requiring vacuum and compression. - Large discounts may apply. Find out more! Product dimensions / photographs Click to enlarge dimensional diagrams or images of the product. Dimensions a: 401 b: 239 b1: 117 c: 33 d1: G-½" d2: G-½" d3: G1" e: 234 e1: 95 e2: 156.5 f: 295 g: 415 g1: 228.5 g2: 186.5 h: 156 h1: 301 h3: 328 h4: 335 l: 140 k: 530 k1: 540 k2: 565 km: ≤398 k1: ≤925.5 o: 64 p: 336 s: 12 s1: M8 Technical data Flow rate: 140 m³/h (50 Hz), 168 m³/h (60 Hz) Ultimate pressure (vacuum version / overpressure version): -0.6 / +0.6 bar Motor power: 7.5 kW (50 Hz), 9.0 kW (60 Hz) Nominal motor speed: 1.43 rpm (50 Hz), 1.72 rpm (60 Hz) Noise level: 78 dB(A) (50 Hz), 79 dB(A) (60 Hz) Weight: 140 kg Cooling system: Air Permissible ambient temperature: 0-40 ºC Gas inlet: 1-1/2" G(BSP) Gas outlet: 1-1/2" G(BSP) Applications - Printing industry - Graphic arts industry - Electric engineering - Automation - Aeration - Other Key features / Technical specifications: - 100% oil-free - Single-stage, air-cooled, direct-driven - Top-quality graphite vanes (EK60) - Quiet operation - Minimal compressor downtime - Standard pressure regulating valves - Ideal for vacuum and compression in industrial applications - Flow rate: 140 m³/h (50 Hz), 168 m³/h (60 Hz) - Ultimate pressure: -0.6 / +0.6 bar - Motor power: 7.5 kW (50 Hz), 9.0 kW (60 Hz) - Noise level: 78 dB(A) (50 Hz), 79 dB(A) (60 Hz) - Weight: 140 kg - Cooling: Air - Permissible ambient temperature: 0-40 ºC - Gas inlet/outlet: 1-1/2" G(BSP)
