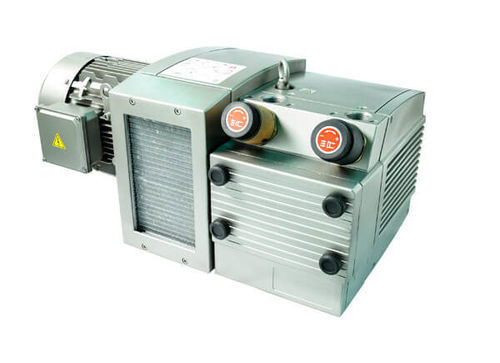

Rotary vane vacuum pump MVS-VP080

oil-freesingle-stageportable

Marpa Vacuum MVS-VP series products are 100% oil-free. They are single-stage, air-cooled and direct-driven. Equipped with top-quality graphite vanes (EK60) and feature quiet operation. This, combined with the compressors’ accessible design, results in minimal compressor downtime. In addition, the pumps are fitted with standard pressure regulating valves. Because they do not use oil, these pumps are ideal for industrial applications requiring vacuum and compression. Applications: - Printing industry - Graphic arts industry - Electric engineering - Automation - Aeration - Other Product dimensions / photographs: Click to enlarge dimensional diagrams or images of the product. Dimensions Table: Dimensions: a: 327, b: 190, b1: 95, c: 33, d1: G1", d2: G1", d3: G 1/4", e: 138, e1: 65, e2: 115, f: 235, g: 355, g1: 189, g2: 150, h: 161, h1: 275, h3: 314, h4: 331, l: 93.5, k: 401, k1: 414, k2: 451, km: <330, k1: <731, o: 49.5, p: 289, s: 12, s1: M8 Technical Data Sheet: - Flow rate: 80 m³/h (50 Hz), 96 m³/h (60 Hz) - Ultimate pressure: -0.6 / +0.6 bar - Motor power: 4 kW (50 Hz), 4.8 kW (60 Hz) - Nominal motor speed: 1.42 rpm (50 Hz), 1.71 rpm (60 Hz) - Noise level: 76 dB(A) (50 Hz), 77 dB(A) (60 Hz) - Weight: 79 kg - Cooling: Air - Permissible ambient temperature: 0-40 ºC - Gas inlet/outlet: G(BSP) 1" Key Features / Technical Specifications: - 100% oil-free operation - Single-stage, air-cooled, direct-driven - Top-quality graphite vanes (EK60) - Quiet operation - Minimal compressor downtime - Standard pressure regulating valves - Ideal for vacuum and compression in industrial applications
