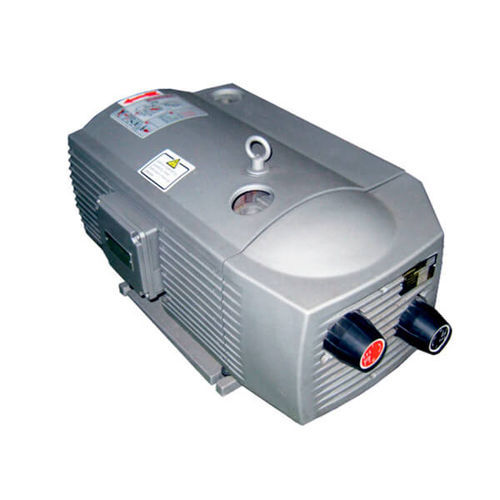

Rotary vane vacuum pump MVS-VP025oil-freesingle-stagevalves
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- oil-free
- Number of stages
- single-stage
- Applications
- for industrial applications, valves
- Other characteristics
- air-cooled, compressor
- Ultimate vacuum
Min.: -0.6 mbar
(-0.01 psi)Max.: 0.6 mbar
(0.01 psi)- Flow rate
20 m³/h, 30 m³/h
(706.29 ft³/h, 1,059.44 ft³/h)- Power
1.25 kW, 1.5 kW
(1.7 hp, 2.04 hp)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 40 °C
(104 °F)- Length
545 mm
(21 in)- Width
328 mm
(12.91 in)- Height
290 mm
(11.42 in)- Noise level
68 dB, 69 dB
- Weight
36 kg
(79.37 lb)
Description
products are 100% oil-free.
They are single-stage, air-cooled and direct-driven.
They are equipped with top-quality graphite vanes (EK60) and feature quiet operation.
This, combined with the compressors’ accessible design, results in minimal compressor downtime.
In addition, the pumps are fitted with standard pressure regulating valves.
Because they do not use oil, these pumps are ideal for industrial applications requiring vacuum and compression.
