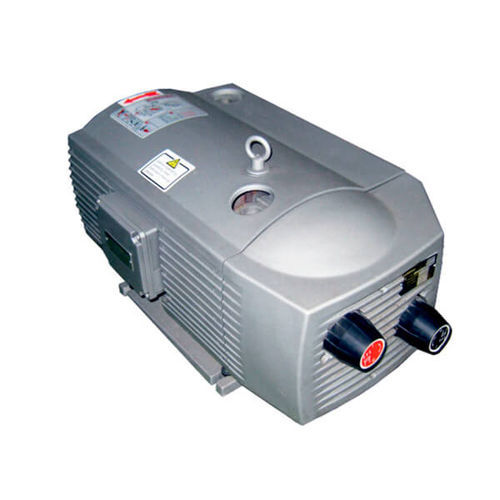

Rotary vane vacuum pump MVS-VP016
oil-freesingle-stagevalves

Rotary vane vacuum pump - MVS-VP016 - MARPA VACUUM S.L - oil-free / single-stage / valves
Rotary vane vacuum pump - MVS-VP016 - MARPA VACUUM S.L - oil-free / single-stage / valves
Add to favorites
Compare this product

Characteristics

Technology
rotary vane
Lubrication
oil-free
Number of stages
single-stage
Applications
for industrial applications, valves
Other characteristics
air-cooled, compressor
Ultimate vacuum

Max.: 0.6 mbar
(0.01 psi)

Min.: -0.6 mbar
(-0.01 psi)

Flow rate

16 m³/h, 20 m³/h
(565.03 ft³/h, 706.29 ft³/h)

Power

0.75 kW, 0.9 kW
(1.02 hp, 1.22 hp)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: 0 °C
(32 °F)

Length

511 mm
(20.118 in)

Width

283 mm
(11.14 in)

Height

225 mm
(8.86 in)

Noise level

67 dB, 68 dB

Weight

36 kg
(79.37 lb)

Description

products are 100% oil-free. They are single-stage, air-cooled and direct-driven. They are equipped with top-quality graphite vanes (EK60) and feature quiet operation. This, combined with the compressors’ accessible design, results in minimal compressor downtime. In addition, the pumps are fitted with standard pressure regulating valves. Because they do not use oil, these pumps are ideal for industrial applications requiring vacuum and compression.
