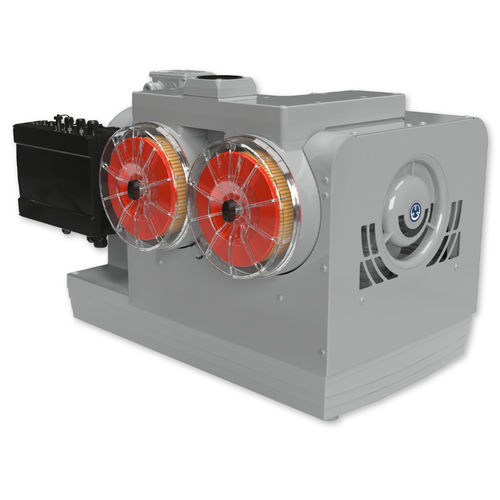

Rotary claw vacuum pump VARIAIR BCV 300
lubricatedsingle-stagesuction

rotary claw vacuum pump
rotary claw vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
rotary claw
Lubrication
lubricated
Number of stages
single-stage
Applications
suction
Other characteristics
compact, air-cooled, low energy consumption
Ultimate vacuum

325 mbar
(4.71 psi)

Flow rate

150 m³/h
(5,297.2 ft³/h)

Power

7.5 kW
(10.2 hp)

Length

956 mm
(38 in)

Width

580 mm
(22.83 in)

Height

624 mm
(24.57 in)

Noise level

74 dB

Weight

340 kg
(749.57 lb)

Description

The VARIAIR BCV 300 is a medium vacuum displacement pump with a VARIAIR frequency inverter. It is air-cooled, contact free and requires only minimal maintenance. Built-in suction filter with clear cover Vibration isolators VARIAIR frequency inverter Features 100% oil-less operation chamber Air-cooled Non-contact compression Continuous duty rated Single shaft direct drive Compact design Variable frequency Internal filtration with clear cover Benefits No external filters needed Low maintenance, minimal maintenance costs Straightforward construction for fast and easy service on-site to reduce downtime Low energy consumption, low energy costs Quick visual check of filter status
