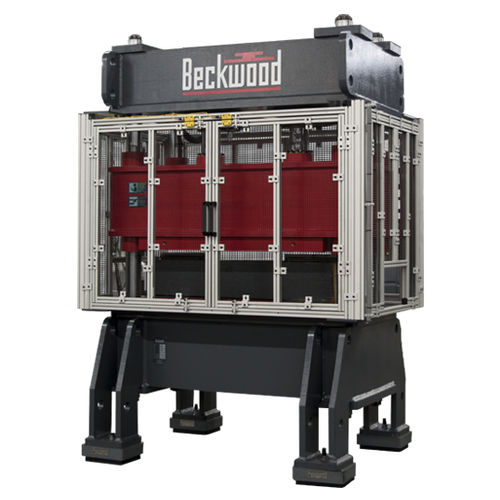

Hydraulic press
punchingblanking4-column

hydraulic press
hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Function
punching, blanking
Structure
4-column
Control
PLC-controlled
Other characteristics
custom, high-speed
Applications
for steel, for aluminum
Force

75 tf

Description

Custom Features: 30” x 50” bed & ram bolsters Ram speeds capable of 60 strokes/minute Programmable fixed stops for fast ram retract 6” x 24” scrap shoot in the bed weldment Hydraulic circuit is specifically designed for short cycling of the press (4) 4” diameter chrome housing posts with graphite impregnated bronze bushings for superior ram guidance and rigidity Bolt on expanded metal guards with safety interlocks cover the front, side & rear openings Skid mounted power system and reservoir Kidney loop filter/cooler circuit with thermostatically controlled fan motor Vibration dampening leveling pads provided to absorb mechanical energy for overall system protection Common Features on Beckwood Presses: Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance Fully adjustable Parker cylinders with full rated tonnage throughout the stroke PressLink Remote Support module for complementary diagnostics & troubleshooting Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing Backed by Beckwood’s industry leading dedicated service and support team
