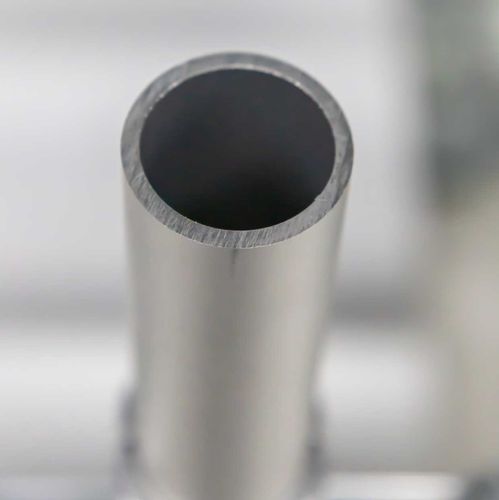

Aluminum profile

roundindustrialconstruction

Overview
Light, flexible and elegant. The aluminium pipe racking system enables quick, modular assembly of workstations and operational equipment for customised production environments. Its lightweight construction and refined surface options make it suitable for light structural frames, superstructures for transport carts and for autonomous mobile robot (AMR) superstructures.

Applications

• Light structural frames and supports
• Superstructures for transport carts and trolleys
• Superstructures and guides for autonomous mobile robots (AMR)
• Flow racks and shelving systems

Product components and variants
The system comprises aluminium round pipes, profiled round pipes and double profiled pipes in different diameters and wall thicknesses. Surface finishes include PE-coating and anodising. Variants include simple round pipes, profiled pipes (lateral profile to prevent twisting), reinforced heavy-duty pipes (internal ribs) and double pipes for greater spans and higher loads.

Joints and fittings
A flexible joint system developed for aluminium pipes allows combination of different pipe types and sizes. Joints are available as internal clamp joints (tighten from the inside, suitable at pipe ends) and external clamp joints (placed around the pipe or tightened onto a profile holder). The joint system attains high pull-out and holding forces (over 80 kg depending on joint type). Fittings enable fast, elegant and simple connections.

Compatibility and modularity
The aluminium pipe system is compatible with other BeeWaTec pipe mounting systems (round steel pipes, square steel pipes and square aluminium pipes) enabling modular combinations. A broad range of accessories expands functionality: panels (tabletops, shelves, partitions), lifting systems (height adjustment), roller tracks (FIFO flow racks), installation supports and castors, workplace LED lighting and add-ons such as panel holders, guides, cable clamps and labels.

Sustainability & flexibility
Designed for lean solutions: structures can be adapted, modified or extended easily to meet changing requirements, reducing waste and enabling long-term reuse.

Technical specifications

• Brand: BeeWaTec
• Product type: Aluminium pipe racking system
• Pipe diameters: Ø28 mm and Ø43 mm (round and profiled variants)
• Pipe surface finishes: PE-coated or anodised
• Available variants: simple round pipe, profiled round pipe, reinforced heavy-duty (internal ribs), double profiled pipe
• Wall thickness: multiple thicknesses available for varied load-bearing capacities
• Connection types: internal clamp joints; external clamp joints
• Joint performance: pull-out/holding forces achievable over 80 kg depending on joint
• Typical applications: light structures, transport cart superstructures, AMR superstructures, flow racks, shelving
• Compatibility: combinable with BeeWaTec round steel pipes, square steel pipes and square aluminium pipes
• Accessories: panels, lifting systems, roller tracks, installation supports & castors, workplace lighting, panel holders, guides, cable clamps, labels
• Design focus: lightweight, easy assembly, modularity and adaptability for lean production
