Aluminum profile system

modularlightweightrobust

Product overview
The aluminium pipe racking system is a modular tubular framing solution for lightweight industrial constructions and superstructures. It enables quick realization of workstations, racks and transport-cart superstructures adapted to specific production environments. The system combines a slim aluminium design with high configurability for Lean applications.

Key benefits

• Modular – Foundation for customised industrial solutions and rapid reconfiguration.
• Compatible – Interoperable with other BeeWaTec pipe systems (round steel, square steel, square aluminium) and a wide range of fittings.
• Sustainable – Components can be modified or reused to reduce waste and extend lifecycle.

Pipes
Available pipe types include aluminium round pipes, round pipes with lateral profile and profile double pipes. Standard diameters: Ø28 mm and Ø43 mm. Surface finishes: PE-coated or anodised. Variants include multiple wall thicknesses for increased load capacity, heavy-duty versions reinforced by internal ribs and double-pipe variants. The lateral profile on profiled pipes prevents twisting.

Joints and fittings

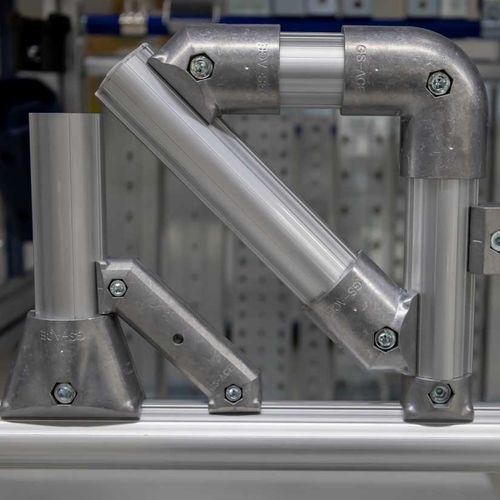

G.S. ACE aluminium pipe joints provide flexible connection options. Two main joint concepts: internal clamp joints (tighten from the inside, typically used at pipe ends) and external clamp joints (clamp around the pipe, offer greater flexibility and prevent twisting). The joint system can achieve high pull-out and holding forces (over 80 kg depending on configuration). A broad range of fittings enables stable constructions combining different pipe types and sizes.

Applications
Typical uses: lightweight structures and racks, transport cart and AMR superstructures, flow racks and roller conveyors (FIFO), ergonomic workstations, lifting systems for height adjustment, tabletops and shelves, installation supports and castors, plus numerous accessories (panel holders, guides, cable clamps, labels, etc.).

Accessories & additional equipment
Complementary components include roller tracks, installation supports and castors, LED workplace lighting, panels (tabletops, shelves, partitions), lifting systems for height adjustment, perforated panels and various add-on parts to extend functionality and modularity.

Technical specifications

• Product family: Aluminium pipe racking system
• Manufacturer / brand: BeeWaTec
• Pipe diameters: Ø28 mm and Ø43 mm
• Pipe types: round pipes, round pipes with lateral profile, profile double pipes
• Surface finishes: PE-coated or anodised
• Variants: multiple wall thicknesses, heavy-duty (internal ribs), double-pipe variant
• Joints: internal clamp joints (end use) and external clamp joints (around pipe)
• Pull-out / holding forces: joint system capable of very large forces (over 80 kg, application dependent)
• Compatibility: compatible with BeeWaTec pipe systems (round steel, square steel, square aluminium) and Ø28 mm steel joints or special internal clamping aluminium joints
• Typical applications: light structures, transport cart superstructures, AMR superstructures, flow racks, conveyor systems, workstations
• Accessories: panel holders, guides, cable clamps, labels, roller tracks, lifting systems, workplace lighting, installation supports & castors
• Supplier partnership: G.S. ACE (pipe and joint supplier)
