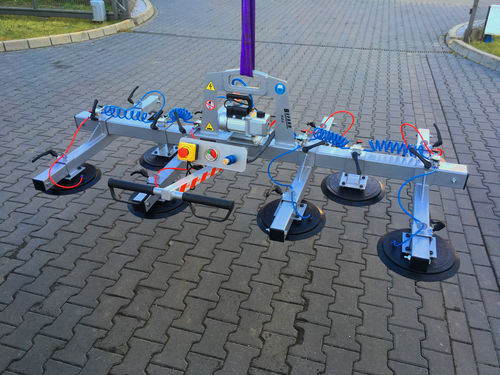

Sheet metal vacuum lifting device XS series

horizontal

The BEFARD XS vacuum lifter is used for short-distance movement of loads with a tight and compact surface, such as (mainly) sheet metal, but also steel, raw wood, glass, laminated and veneered particle board and MDF, synthetic sheets, etc. This device speeds up work and, most importantly, increases the safety of employees. The BEFARD XS bracket is a vacuum device installed on the hook of any crane-like device. Depending on the model, it allows you to pick up loads up to 1260 kg. There are the following models of BEFARD XS vacuum gripper: •BEFARD XS 360 – designed for horizontal operation, maximum lifting capacity 360 kg, 4 suction cups •BEFARD XS 540 – designed for horizontal operation, maximum lifting capacity 540 kg, 6 suction cups •BEFARD XS 720 – designed for horizontal operation, maximum lifting capacity 720 kg, 8 suction cups •BEFARD XS 900 – designed for horizontal operation, maximum lifting capacity 900 kg, 10 suction cups •BEFARD XS 1080 – designed for horizontal operation, maximum lifting capacity 1080 kg, 12 suction cups •BEFARD XS 1260 – designed for horizontal operation, maximum lifting capacity 1260 kg, 14 suction cups BEFARD XS vacuum lifter – advantages: – supplied from the mains – maximum lifting capacity up to 1260 kg – horizontal operation possible – 4, 6, 8, 10, 12 or 14 suction cups Ø310 mm (manual spacing adjustment) – grips sheets of any material – grabs and releases the load quickly – reduces costs and increases security
