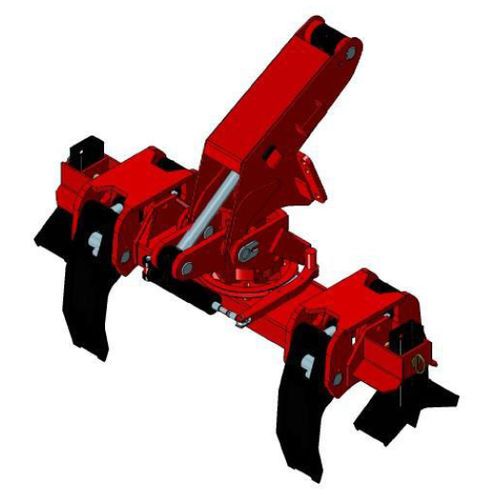

Pipe manipulator BX serieshydraulicwith gripping toolfor lifting
Add to favorites
Compare this product
Characteristics
- Drive type
- hydraulic
- Gripping device
- with gripping tool
- Applications
- for lifting, for pipes
- Domain
- for the steel industry
- Carrying capacity
Min.: 500 kg
(1,102.3 lb)Max.: 3,000 kg
(6,613.9 lb)
Description
Manipulator BX is used to lift pipes and flagstaffs to the upright position. Manipulator is mounted to the extendible part of the crane by means of a flange.
Leeway is possible due to three major hydraulic functions: capturing, turning and tilting ( required three hydraulic control circuits).
Constant rotation area.
Limited load from 500 kg to 3000 kg are moved through BEFARD buckets. Upright position is possible thanks to our rotator with mechanical and hydraulic brake for rotational movement.
