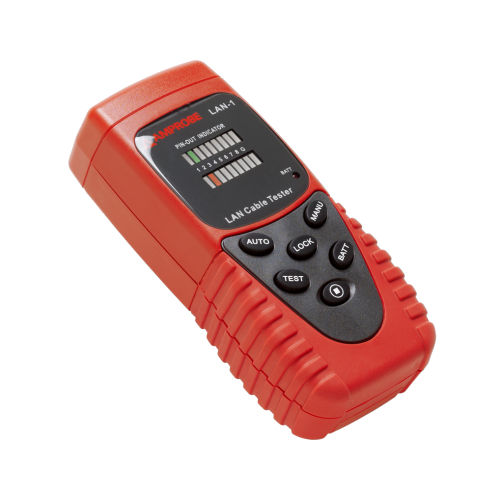

Network tester LAN-1

operationalloopcable

The LAN-1 Cable Tester is designed for testing opens, shorts and miswired cable installations. It is designed to work with various data cables and connectors. This cable tester provides a quick go / no-go LED display of the wiring and connection of item under test. You can either step through the test cable wiring one at a time or have the unit automatically pulse through the pin-outs and display the results. Functions • Testing wiring faults of LAN cables • Detection of cable breaks, short circuits, reversed and split pairs • Check of shielding Product information • Test pin configuration for: - 10/100 base - 10 base-2 cables - RJ45 cables - AT&T 258A cables - EIA / TIA 568A/568B cables - Token ring cables • Testing installed cable on wall plate or the patch panels by using an external coding plug • Testing a cable loop or remote testing with a coding plug • Acoustic error display Product highlights • Automatic and manual test procedure • Recognition of split pairs
