electric press / welding / with heating plates / water-cooled
HP01 WATER

{{requestButtons}}

Characteristics

  • Operation:

    electric

  • Function:

    welding

  • Other characteristics:

    with heating plates, water-cooled

Description

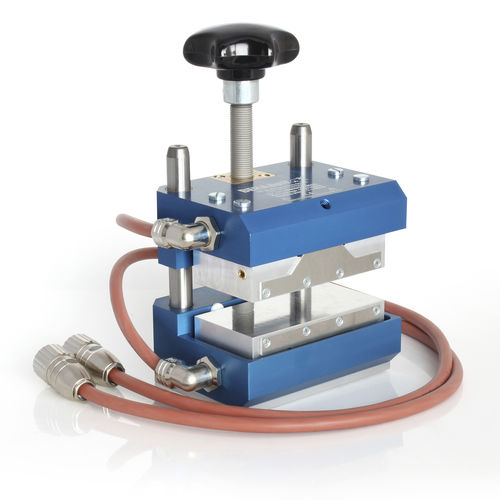

BEHAbelt HP01 WATER
Hotpress
PERFECT SWITCHING AND OVERFLOW WELDING!
HP01 WATER is the water cooled version of the hot press and offers higher cooling capacity.

Features at a glance

Very easy to use.
Reduces operator errors through a fully automatic and controlled welding and vulcanization process.
Thanks to its exchangeable moulds the HP01 is suitable for splicing many different profiles and flat belts made of PU and TPE as well as timing belts.
User friendly operation through self-explanatory menu of controller (no expertise required).
Perfect welding within minutes.
Temperature variation is never a concern (no guesswork).
Real time data logging & diagnostics function for quality assurance of the splice.
Different types of welds possible (overlap welds, butt welds and angle welds).
Different types of welds possible (overlap welds, butt welds and angle welds.)
Due to its small size and the hook for hanging up the press during the welding process, the HP01 can be used in confined spaces “on-site”.
Best welding solution for reinforced profiles (aramid, polyester and steel) through overlap welding.

TECHNICAL DATA
Heating plate dimensions:120 x 60 mm
Dimensions (HxWxD):240 x 167 x 200 mm
Weight:approx. 4.800 g

Same characteristics as HP01 AIR, but with the following distinguishing features:
Higher cooling capacity
Cooling drum included in scope of supply
Could also be cooled with compressed air
