Roller conveyor materials handling system

for packagingfor loadsfor industrial use

Overview
The range of different application types in intralogistics is very extensive. In order that the individual processes can be coordinated in the best possible way, BEHAbelt offers versatile solutions for the requirements of material handling. Product solutions range from classic round and V-belts to elastic monolithic conveyor belts. Suitable welding technology allows minimisation of downtimes quickly and cost-effectively, even on site.
Applications (typical intralogistics applications)

• Roller conveyor
• Check weigher
• Ascending conveyor
• Inclined conveyor
• Labelling systems
• Cross conveyors
• Packaging machines
• Conveyor lines
• Curved conveyors
• Inward and outward transfer
• Weighing technology
• Sorting conveyors and many more

NEW: PUgrip conveyor belts - Soft. Grippy. Reliable. Application / Characteristics

• Specially developed for safe grip of goods such as boxes and parcels
• Reliable grip even with low contact pressure
• Soft conveyor side made of PU55A ensures excellent grip and prevents unwanted build-up in incline conveyors
• 2-component design with hard bottom side made of PU80A provides optimised sliding properties for smooth, energy-efficient belt running and lower bearing load
• Versions for friction and positive driven systems
• Antistatic equipment reduces electrostatic charging during operation
• Minimises attraction of dust and particles, keeping the belt surface clean for longer
• Reduces friction between the belt and conveyor technology for smoother running

Advantages of the groove structure

• Specially designed longitudinal and transversal grooves
• Excellent grip for conveyed material
• Profiled backs ensure maximum grip and safe transport of products
• Dust and particles collect in profile recesses so surface remains clean and functional
• Deposited dirt falls out reliably when the belt is deflected

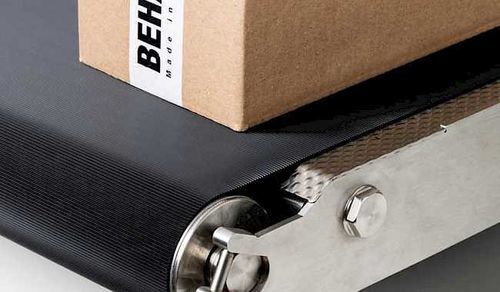

NEW: PUgrip: Top side: Transversal grooves (TGA) / Bottom side: Fabric impression (FI)
Article no.: FBFOJ750X25A | Color: black | Characteristics: Food contact (FDA), vegan, hydrolysis-resistant, microbial-resistant, antistatic, microclean, 2-component | Quality: PU55A / PU80A | Hardness: 60°A (±3) / 84°A (±3) | Belt thickness: 2,5 mm | Recommended min. pulley Ø: 18 mm | k1% static: 0,4 | k1% relaxed: 0,3 | Standard roll: 50 m | Recommended pretension: 1...5%
Top side: Smooth matt (SM) / Bottom side: Fabric impression (FI)
Article no.: FBFI750X16SB | Color: black | Characteristics: Food contact (FDA), vegan, flame-retardant, microclean | Quality: PU75A | Hardness: 80°A | Belt thickness: 1,6 mm | Recommended min. pulley Ø: 15 mm | k1% static: 0,34 | k1% relaxed: 0,24 | Standard roll: 50 m | Recommended pretension: 1...5%
Top side: Slightly rough (SR) / Bottom side: Fabric impression (FI)
Article no.: FBFJ750X12SB | Color: black | Characteristics: Food contact (FDA), vegan, flame-retardant (in some qualities), microclean, antistatic for some variants | Quality: PU80A | Hardness: 84°A | Belt thickness examples: 1,2 mm ; 1,6 mm | Recommended min. pulley Ø examples: 10 mm ; 15 mm | k1% static: 0,32 | k1% relaxed: 0,23 | Standard roll: 50 m | Recommended pretension: 1...5%
Top side: Longitudinal grooves (LGB)
Article no.: FBFGJ750X22S | Color: bk | Characteristics: Food contact (FDA), vegan, hydrolysis-resistant, microbial-resistant, microclean, 2-component | Quality: PU65A / PU80A | Hardness: 72°A (±3) / 80°A | Belt thickness: 2,2 mm | Recommended min. pulley Ø: 18 mm | k1% static: 0,47 | k1% relaxed: 0,33 | Standard roll: 50 m | Recommended pretension: 1...5%
Top side: Rough Impression (RI)
Article no.: FBFJ750X20SJ | Color: bk | Characteristics: Microclean, Food contact (FDA) | Quality: PU80A | Hardness: 84°A | Belt thickness: 2 mm | Recommended min. pulley Ø: 20 mm | k1% static: 0,44 | k1% relaxed: 0,38 | Standard roll: 50 m | Recommended pretension: 1...5%
Belt profiles and system options
Driven roller conveyors: tangential belts, low-stretch PUplus material for dimensional stability and high load/torque absorption. Monolithic conveyor belts: homogenous extrusion with options for antistatic dissipation, UV resistance, cold flexibility, hydrolysis resistance; available in one or two layers (2C technology) to combine different requirements on top and bottom sides. Crossed drives: weldable elastic belt profiles, option for mechanical quick-connections such as hook belts or hollow round belts. Poly-V (PJ) V-ribbed belts: PUplus material for light load power transmission; can be joined on site with welding paddle and guide clamp.
Welding tools and video-supported joining
Friction welding machine RS02 for PU V- and round belts;
Paddle welding tools EErgo 60/90 for belt profiles and flat strips;
Butt splicing tools HS400/800 for monolithic conveyor belts (on-site butt welding up to 800 mm).
Caractéristiques / spécifications techniques

• Brand: BEHAbelt
• Materials: PU and TPE compounds (PU55A, PU65A, PU75A, PU80A, PU55D, PU85 etc.); PUplus and TPE Bluepower available
• Top-sides available: Transversal grooves (TGA), Smooth matt (SM), Slightly rough (SR), Longitudinal grooves (LGB), Rough Impression (RI) and fabric impressions
• Selectable qualities: food-contact compliant (FDA/EC), vegan, hydrolysis-resistant, microbial-resistant, flame-retardant (selected), microclean, antistatic (conductive), 2-component constructions
• Typical Shore hardness range shown: approx. 55D to 84°A depending on construction
• Belt thickness examples: from approx. 1,2 mm up to 2,5 mm (varies by top side and construction)
• Standard roll length: 50 m (approx. 164 ft) in examples shown
• Recommended pretension ranges from approx. 0,5...3% to 1...5% depending on belt type
• Recommended min. pulley diameter examples range from 10 mm to 20 mm depending on thickness and profile
• Available in versions for friction-driven and positively driven systems; options for low friction running side in 2-component designs
