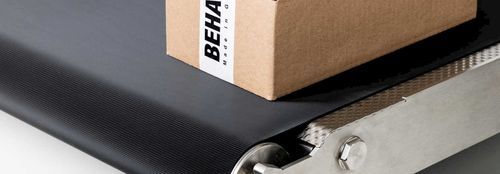

Grooved conveyor belt FBFOJ750X25A

PU84 shore A60 shore A

SOFT. GRIPPY. RELIABLE.
The PUgrip product line by BEHAbelt provides conveyor belts designed to securely convey packages, boxes and plastic trays. The belts feature a soft carrying surface (PU55A) for excellent grip even at low support force and a harder running side (PU80A) in a 2-component construction to improve sliding on conveying equipment, reduce noise and lower bearing loads. Available for both friction-driven and positive-drive applications, PUgrip ensures precise positioning and process reliability.

FEATURES

• Designed for secure handling of goods such as boxes, packages and plastic trays.
• Reliable conveyance even with low contact pressure.
• Soft PU55A carrying surface provides high grip and reduces blockages on incline conveyors.
• 2-component design with PU80A running side for optimized sliding behavior, quieter operation and reduced energy consumption.
• Available for friction and positive-drive systems.

BENEFITS OF THE RIBBED STRUCTURE

• Specifically profiled longitudinal and transverse ribs.
• Excellent hold on conveyed items.
• Profile backing provides maximum grip and secure transport.
• Dust and particles collect in profile recesses keeping the surface functional and clean.
• Deposited dirt is reliably released at belt return.

ANTISTATIC

• Antistatic treatment reduces electrostatic charge during operation.
• Minimizes attraction of dust and particles, keeping the belt surface cleaner for longer.
• Reduces friction between belt and conveyor for smoother running.

Transport surface: Cross ribs (TGA) — Product data (excerpt)
Running side / Surface: Fine-structured (FI)
Article no.: FBFOJ750X25A
Color: sw (black)
Properties: FDA-compliant, vegan, hydrolysis-resistant, microbial-resistant, antistatic, microclean, 2-component
Quality: PU55A (carrying side) / PU80A (running side)
Hardness (Shore): 60°A (±3) / 84°A (±3)
Belt thickness: 2.5 mm / 0.098 inch
Recommended min. pulley Ø: 18 mm / 0.7 inch
k1% static: 0.4 (equiv. 2.3)
k1% relaxed: 0.3 (equiv. 1.7)
Roll length: 50 m / 164 ft
Recommended pretension: 1...5%

CHARACTERISTICS / TECHNICAL SPECIFICATIONS

• Product series: PUgrip (BEHAbelt)
• Construction: 2-component (soft carrying side PU55A + hard running side PU80A)
• Carrying surface: PU55A, fine-structured (FI) with cross ribs (TGA)
• Running surface: PU80A
• Hardness: Carrying side ~60°A (±3); Running side ~84°A (±3)
• Belt thickness: 2.5 mm (0.098")
• Recommended min. pulley diameter: 18 mm (0.7")
• k1% static / relaxed: 0.4 / 0.3 (metric)
• Typical roll length: 50 m
• Recommended pretension: 1–5%
• Additional properties: antistatic, microbial-resistant, hydrolysis-resistant, microclean, FDA contact suitable, vegan
• Typical applications: secure handling of packaging, boxes and plastic trays; incline conveyors; systems requiring high grip and precise positioning
