Band saw LPS-T 3D

verticalfor plasticsfor panels

Overview

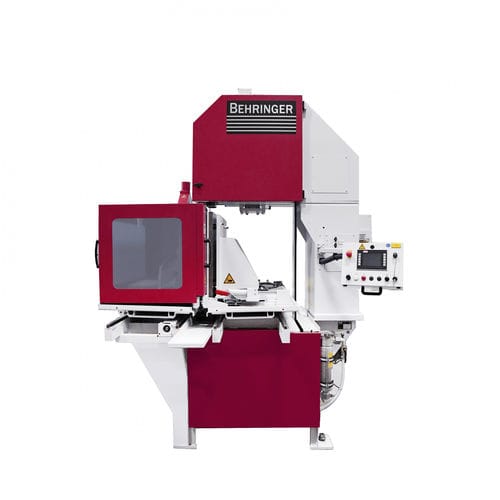

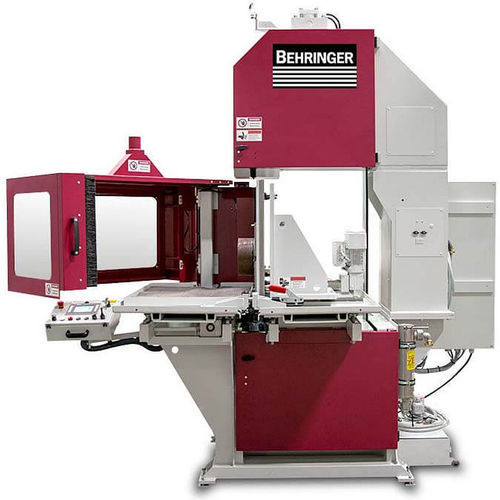

The vertical bandsaw LPS-T 3D by Behringer is designed for sawing 3D printed plates in various sizes up to 850 x 650 mm. The machine features a movable material support table and an NC-controlled workpiece clamping device to simplify loading and unloading; heavy plates can be handled with lifting gear.

Options
Behringer offers process-specific options to adapt the sawing system to customer requirements, including machine enclosure with extraction, Micro Spray minimal quantity lubrication, customised clamping fixtures and a chip conveyor with integrated coolant tank.

Features

• Easy loading/unloading: NC-controlled clamping device and retractable support table allow handling of heavy plates by crane or hoist.
• Optional enclosure and extraction: reduces dust and aerosol emissions depending on material and lubricant.
• Optional Micro Spray System: minimal quantity lubrication via two nozzles to protect the blade and reduce contamination.
• Optional chip conveyor: large-capacity, removable conveyor with integrated coolant tank for cleaning and maintenance.
• High cutting precision: torsion-resistant saw frame and feed force applied directly beneath the cutting point for accurate feed movements.
• Automatic plate positioning: NC axis positions the device to the cutting line after entering the plate thickness.
• Coolant filtration: standard filter unit removes particles and powder residues from the coolant.
• Servo feed with cutting-pressure control: constant chip removal and fast response to cutting pressure for improved cutting performance.
• Quick blade change: tool-free blade change for reduced set-up times.
• Cast-iron band guide parts: Behringer-manufactured components for vibration damping at the cutting edge.
• Compact footprint: suitable for installation in confined production spaces.

Technical data
Cutting Range
Maximum plate size (flat) W x H: 850 x 650 mm
Minimum plate size (flat) W x H: 100 x 100 mm
Maximum print height: 650 mm
Minimum plate thickness: 20 mm

Performance Characteristics
Drive power (saw): 4 kW
Blade speed: 17–120 m/min
Saw blade dimensions: 6,000 x 41 x 1.3 mm
Total installed power: 6 kW
Plate positioning: servo motor via ball screw

Dimensions and Weight
Length: 2,400 mm
Width: 2,300 mm
Height: 3,020 mm
Weight: 3,200 kg
Material support height: 1,150 mm

Technical specifications

• Maximum plate area: 850 x 650 mm
• Minimum plate area: 100 x 100 mm
• Maximum print height: 650 mm
• Minimum plate thickness: 20 mm
• Drive power: 4 kW
• Blade speed range: 17–120 m/min
• Saw blade size: 6,000 x 41 x 1.3 mm
• Total installed power: 6 kW
• Positioning: servo motor via ball screw
• Overall dimensions (L x W x H): 2,400 x 2,300 x 3,020 mm
• Machine weight: 3,200 kg
• Material support height: 1,150 mm
