Band saw HBE320-523 3D

horizontalfor metalsfor pipes

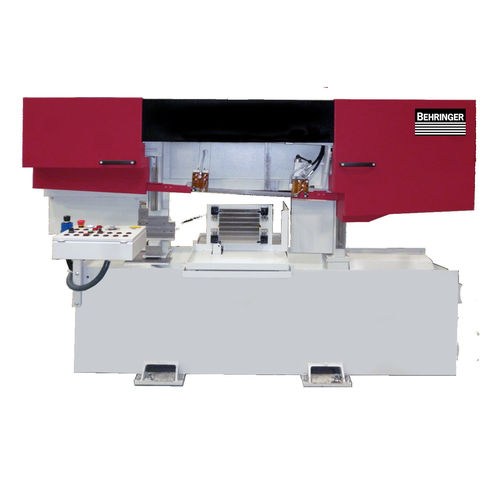

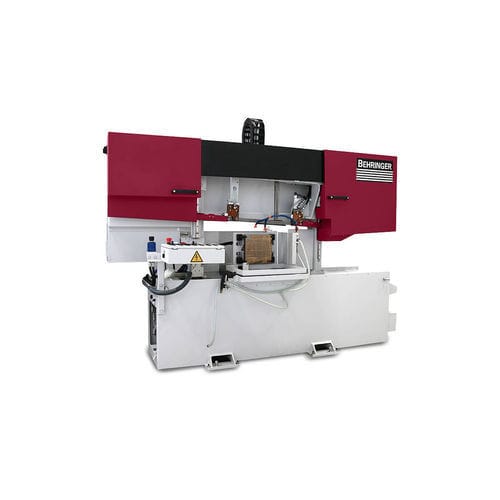

Overview The horizontal bandsaw HBE320-523 3D is designed for cutting 3D printing plates in sizes up to 520 x 300 mm. Workholding is manufactured to customer requirements for high flexibility with varying plate sizes and shapes. A mechanical zero-point stop aligned to the printing plate simplifies setup and reduces error sources. The fixture is movable to enable easy loading and handling.

Options

• Machine housing with extraction option (for filtering dust and aerosols)
• Minimum quantity lubrication / Micro Spray System (optional)
• Individual clamping concepts to customer specifications (e.g. hydraulic clamping units, customised borehole patterns)
• Coolant filtration / coolant cleaning unit (standard) to remove particles and powder residues

Key features

• Quick and easy loading/unloading via a device for holding additively printed base plates; plates can be inserted manually or with lifting gear
• Clamping options tailored to customer needs; standard customised borehole pattern for 3D printing plates
• Housing and exhaust system available to capture dust and vapours depending on material and lubricant
• Sensitive BEHRINGER cutting pressure control that adapts feed to changing material cross-sections for improved cutting performance
• Precision portal-design linear guide system and stable, low-vibration saw frame for best sawing results and long service life
• Zero-point stop system for straightforward alignment of printed panels without re-adjustment for thinning plates
• Standard coolant cleaning / filter unit to extend coolant service life
• Micro Spray System (optional) for minimum quantity lubrication when sawing profiles, pipes and solid material
• Electrically driven chip brush with quick-change device for tool-free brush changes
• Cast iron band guiding parts for vibration damping and increased tool life
• Energy-efficient drives and special hydraulic system (approx. 30% energy reduction vs previous model)
• Sawing process significantly faster than wire EDM machines for applicable tasks

Technical specifications

• Maximum printing plate size (flat W x H): 520 x 300 mm
• Minimum printing plate size (flat W x H): 100 x 100 mm
• Maximum print height: 400 mm
• Minimum plate thickness: 20 mm
• Drive power: 2.6 kW
• Blade speed: 15 - 110 m/min
• Saw blade dimensions: 5,300 x 34 x 1.1 mm
• Total power: 3.7 kW
• Printing plate positioning: mechanical zero-point stop
• Length: 1,150 mm
• Width: 2,750 mm
• Height: 2,150 mm
• Weight: 1,600 kg
• Material support height: 830 mm
