3-axis machining center MAG1225

vertical14 toolsmilling

Overview

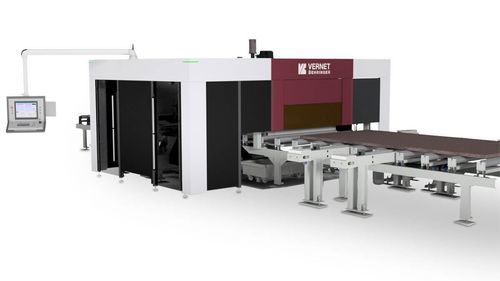

The Vernet Behringer MAG1225 plate machining centre performs high-throughput machining in a passthrough process. It integrates marking, carbide drilling and milling, deburring of holes on lower and upper faces, and high-definition plasma cutting with straight and bevel cuts. The MAG1225 supports automatic part handling and automatic or semi-automatic plate loading.

Capabilities

• Milling
• Marking: V-scoring (standard); optional high-speed disk marking (40 characters)
• Drilling: carbide drilling and milling, up to 50 mm Ø
• Scribing
• High-definition plasma cutting (straight and bevel cuts)

Main features and benefits

• Reduced labour through semi-automatic or automatic plate loading and integrated part handling.
• Combined operations in one passthrough process to avoid part handling between stages.
• Flexible automation modules: automatic loading, automatic unloading and palletizing.
• Optional full enclosure for operator protection.
• Material savings with advanced nesting and continuous chained cutting; repositionable measuring carriage allows remnants from 20 mm.
• Process connectivity: semi or full integration with downstream finishing equipment (e.g., VB by SPK tumbling machine).
• Automatic 14-position tool changer for extended autonomous machining.

Machining dimensions
Plate dimensions: 12,000 x 2,500 mm
Thickness (min / typical / max depending on plasma source): 5 / 5–30 / up to 60 mm
Max. weight: 7 tons or 800 kg/m

Characteristics / Technical specifications

• Model: MAG1225
• Marking: V-scoring (standard); high-speed disk marking unit (40 characters) optional
• Drilling spindle power: 16 kW
• Spindle speed: 160 - 4,000 rpm
• Maximum drill diameter: 50 mm Ø
• Tool changer: 14 stations (automatic)
• Plasma source: Hypertherm / Kjellberg (170 - 400 A)
• Machine control/software: PROSH programming software with nesting license
• Available automation: automatic/semi-automatic plate loading, automatic part unloading, palletizing
