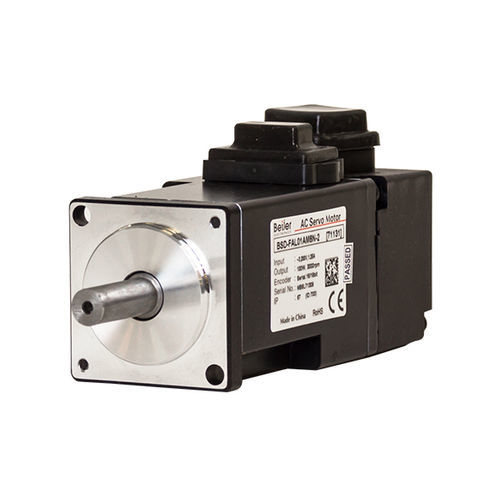

AC servomotor BSD-FAL01AM8N-2

380 VIP65EMC

-230 VAC, 100 W -40mm flange, 8mm shaft, 0.32/0.96Nm, 3000/5000rpm -Absolute 18 bit multi turn encoder (262144 ppr) -Low inertia Mechanical Inertia - 0.0023 kg•cm² Flange size - 40 mm Shaft diameter - 8 mm Shaft type - Smooth Maximum shaft axial force - 39 N Maximum shaft radial force - 148 N IP Class - IP65 (exkluding shaft penetration) Weight - 0.8 kg Ambient conditions Environment - Avoid direct sunlight, no corrossive gas, inflammable gas, oil mist or dust Humidity - 90% RH or less (no condensation) Temperature range - Operating: 0 to 40 C°, Storage: -10 to +60 C° Vibration - 5G Brake Holding brake - No Holding torque - 0.32 Nm Brake coil voltage - 24 VDC Brake coil current - 0.25 A Encoder Encoder type - Absolute multi-turn 18bit (262144ppr) Output ratings Rated power - 100 W Rated speed - 3000 rpm Rated torque - 0.32 Nm Maximum torque - 0.96 Nm Tuning Allowed load inertia ratio - 30 times motor inertia Standard compliances Applied directives - EMC Directive: EN 60034-1:2010 Low Voltage Directive: EN 60034-5:2001 + A1:2007
